LT-268
LT

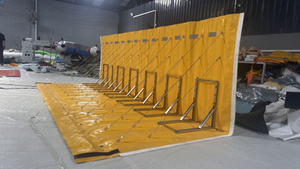

Protective & Efficient: The panels form a robust flood wall that uses incoming hydrostatic pressure to seal more tightly. Compared with sandbags, the LTCANOPY barrier can be rapidly deployed – two people can build a 20m section in about 1 minute – dramatically saving time and labor. Constructed from weather-resistant PVC tarpaulin and stainless steel, it maintains integrity even at –30°C. Importantly, no filling with sand or water is needed, conserving resources. The system is reusable and recyclable, and panels can be customized in color and markings for clear identification in any deployment.
Product Parameter:
Standard size:
Product Dimension(Inch) | Product Dimension(cm) | Packing Dimension(cm) | Product Weight(KGS) | Packing weight(KGS) |
L 78.7” x W47.2” x H 35.4” | L 200 x W 120 x H 90 | L 110 x W 26 x H 26 | 20 | 22 |
L 157.5” x W 47.2” x H 35.4” | L 400 x W 120 x H 90 | L 110 x W 33 x H 33 | 40 | 42 |
L 78.7” x W 59” x H 47.2” | L 200 x W 150 x H 120 | L 136 x W 26 x H 26 | 24 | 26 |
L 157.5” x W 59” x H 47.2” | L 400 x W 150 x H 120 | L 136 x W 33 x H 33 | 52 | 54 |
L 78.7” x W 70.9” x H 59” | L 200 x W 180 x H 150 | L 166 x W 26 x H 26 | 30 | 32 |
L 157.5” x W 70.9” x H 59” | L 400 x W180 x H 150 | L 166 x W 33 x H 33 | 60 | 62 |
Color:Standard yellow, customizable (reflective strip optional).
Thickness:1.5mm/0.9mm.
Weight:4KG/ square meter.
Material:PVC coated tarpaulin / stainless steel accessories.
Advantage:
●The service life is long, compared with the flood barrier of plastic material.
●It can be folded and takes up little storage space.
●Can be quickly deployed before the flood.
●No need to instill water, saving water resources.
●It can be quickly fixed to the ground, and screws provide assistance.
●It can be used in extremely cold, low temperature of -30 degrees Celsius.
●The length can be freely combined.
●Self-supporting flood protection barrier.
●Can Turnable.
Application:residential area & gas station & River Embankment & road &street
Additional Information:
●PVC coated tarpaulin is ultra robust and abrasion resistant for installations on all types of surfaces.
●The flooding barrier is folded in a manner so that it can be deployed quickly in a body of water.
●D ring and belt to help expanded the length of barrier.
●Fiberglass plate help manipulate and elevate the ends of the flood barrier for best placement.
●Stainless steel connector make the barrier easier to fold and fix.
●Eyelets and pegs to help anchor the barrier.

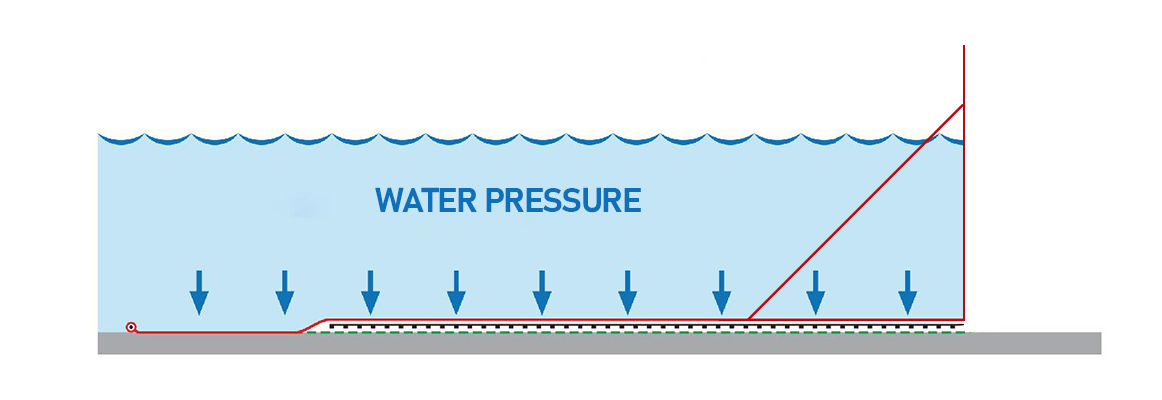

How It Work - L Shaped Bookend:
The panels interlock to form a continuous water-blocking wall. Incoming floodwater presses the panels firmly to the ground, improving the seal and preventing seepage. This leverages hydrostatic pressure – for every meter of water depth, pressure increases by ~9.8kPa – so higher water levels actually push the barrier into place for tighter sealing. Internal rubber seals along seams stop leakage. Special corner units enable a full 360° enclosure around doorways or bends, ensuring a watertight flood defense around any protected area.

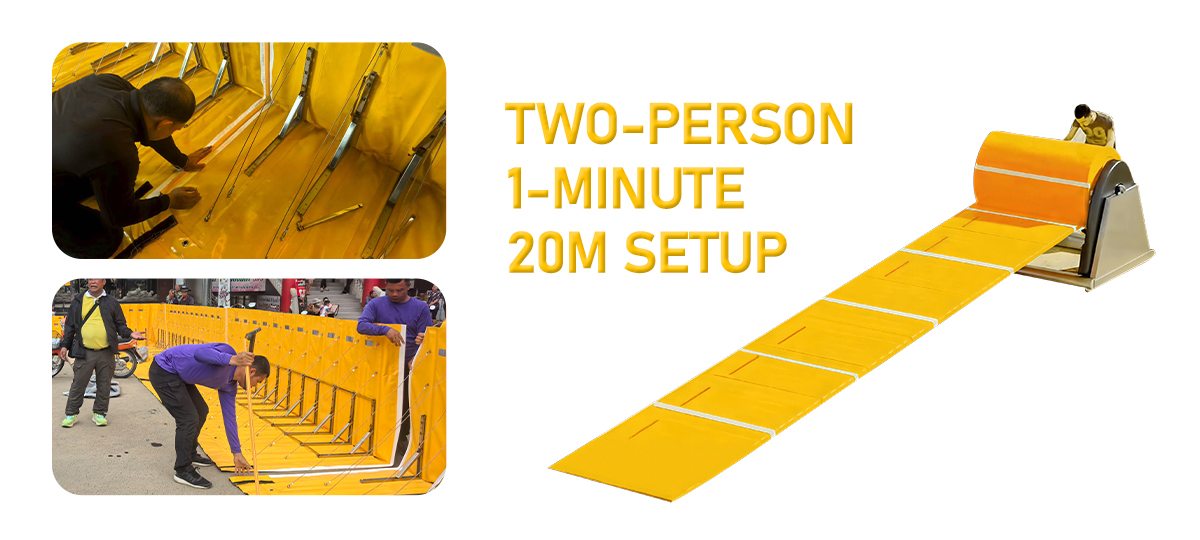

Rapid Deployment
Two-person, 1-minute / 20m setup: The LTCANOPY panels are engineered for hand placement and linking. Field tests show that two people can erect about 20 meters of barrier in just 1 minute, far faster than digging sandbags. In fact, modular flood barriers can be deployed by 1–2 people in a matter of minutes, with no heavy machinery required. This rapid setup greatly enhances emergency response capabilities.

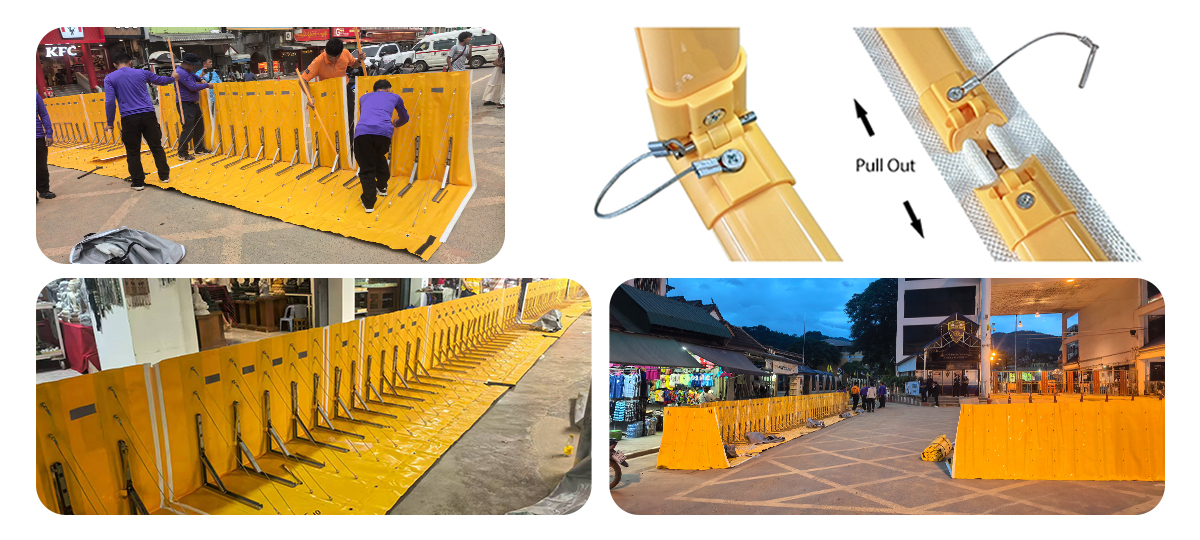

Unlimited Connectivity

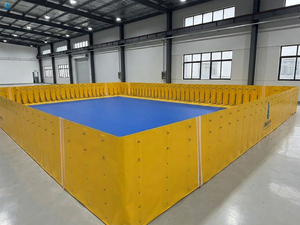

Unlimited Extension: Each panel has stainless-steel connectors and can be joined end-to-end or at angles. The modular system lets you freely extend the barrier to any length or shape – straight runs, L/bent corners, even fully enclosed cofferdams. This flexibility enables quick creation of large-scale protective perimeters tailored to complex terrain.

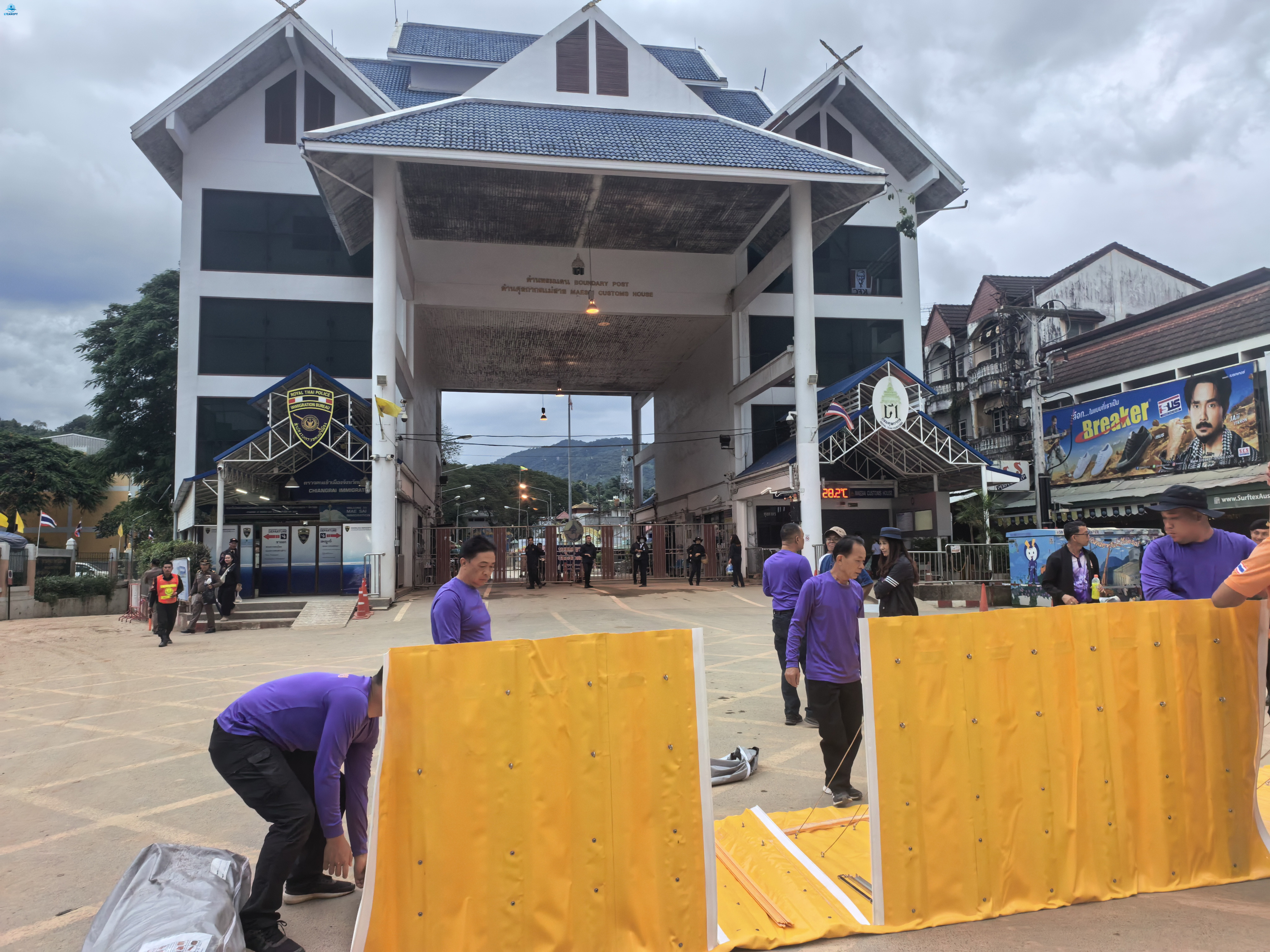

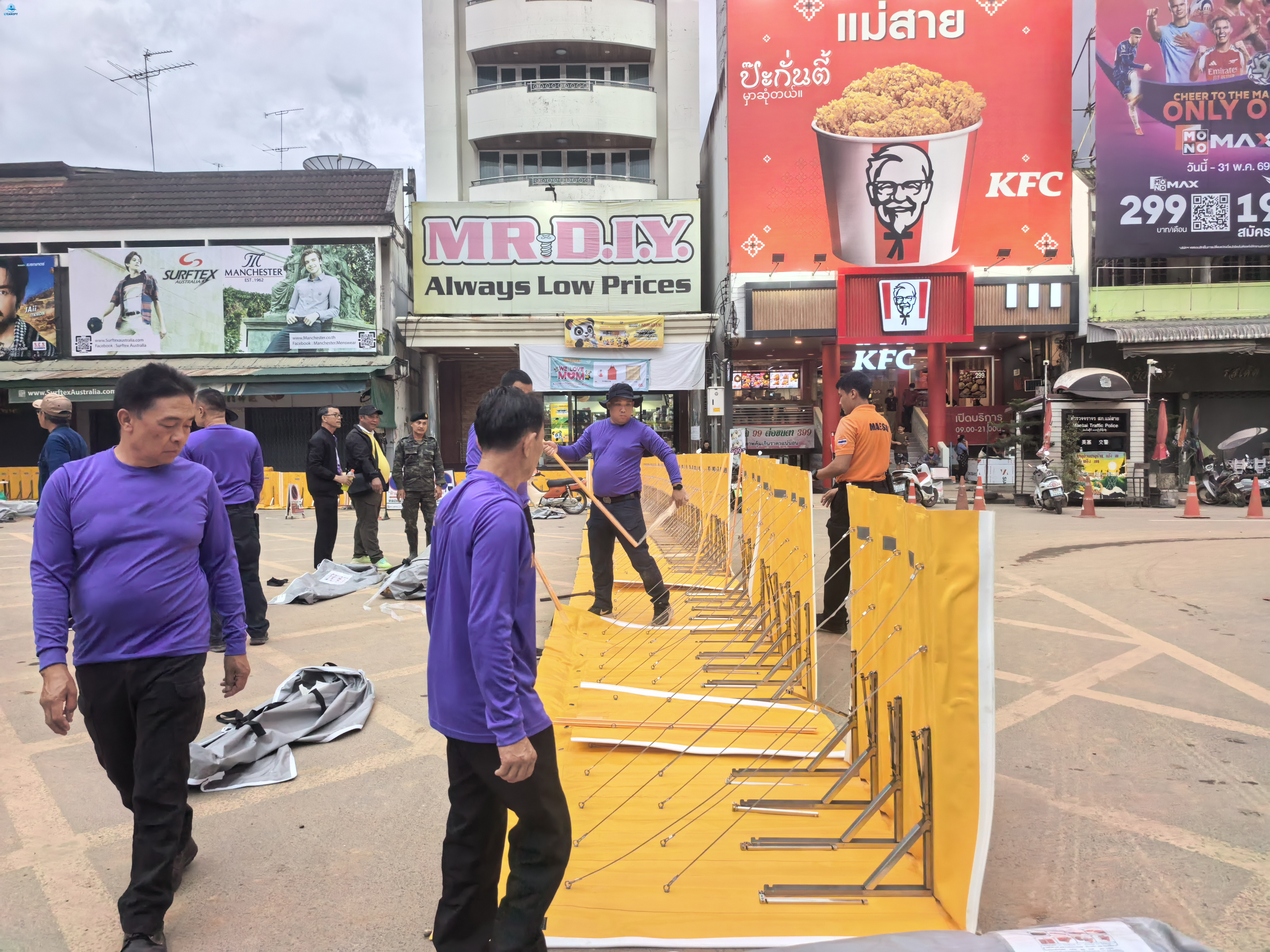

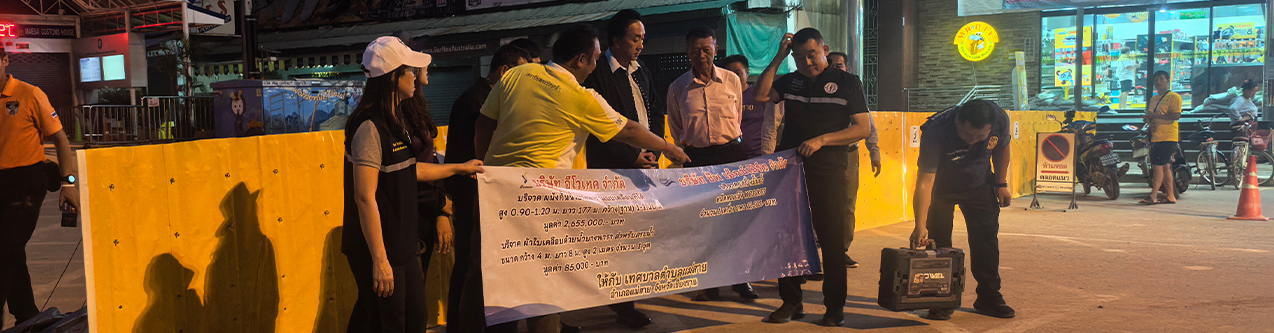

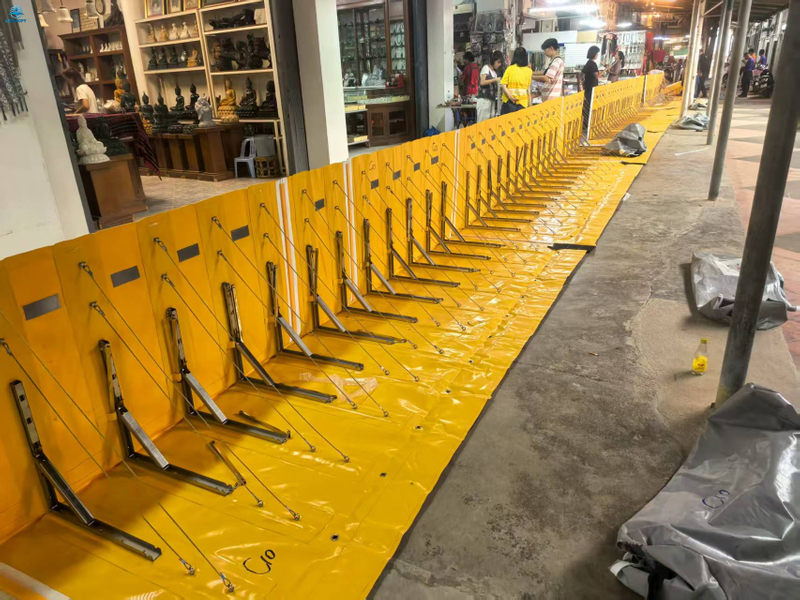

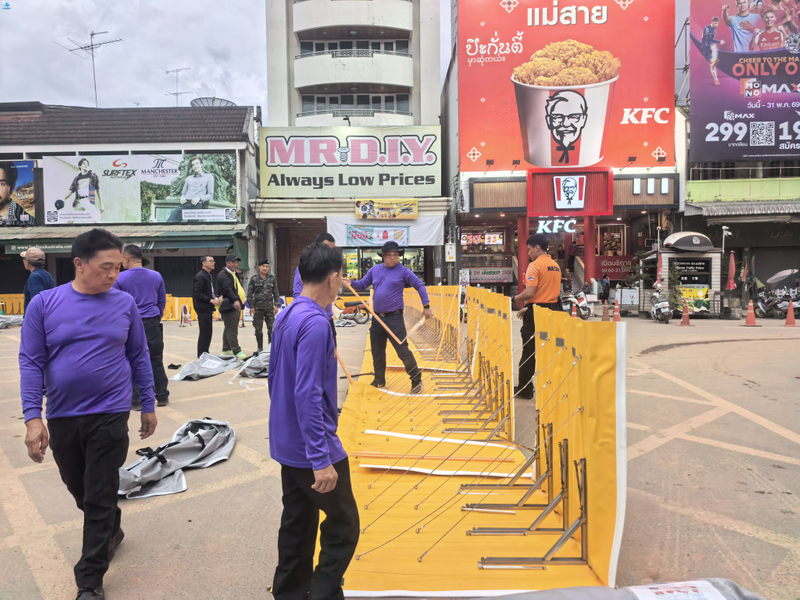

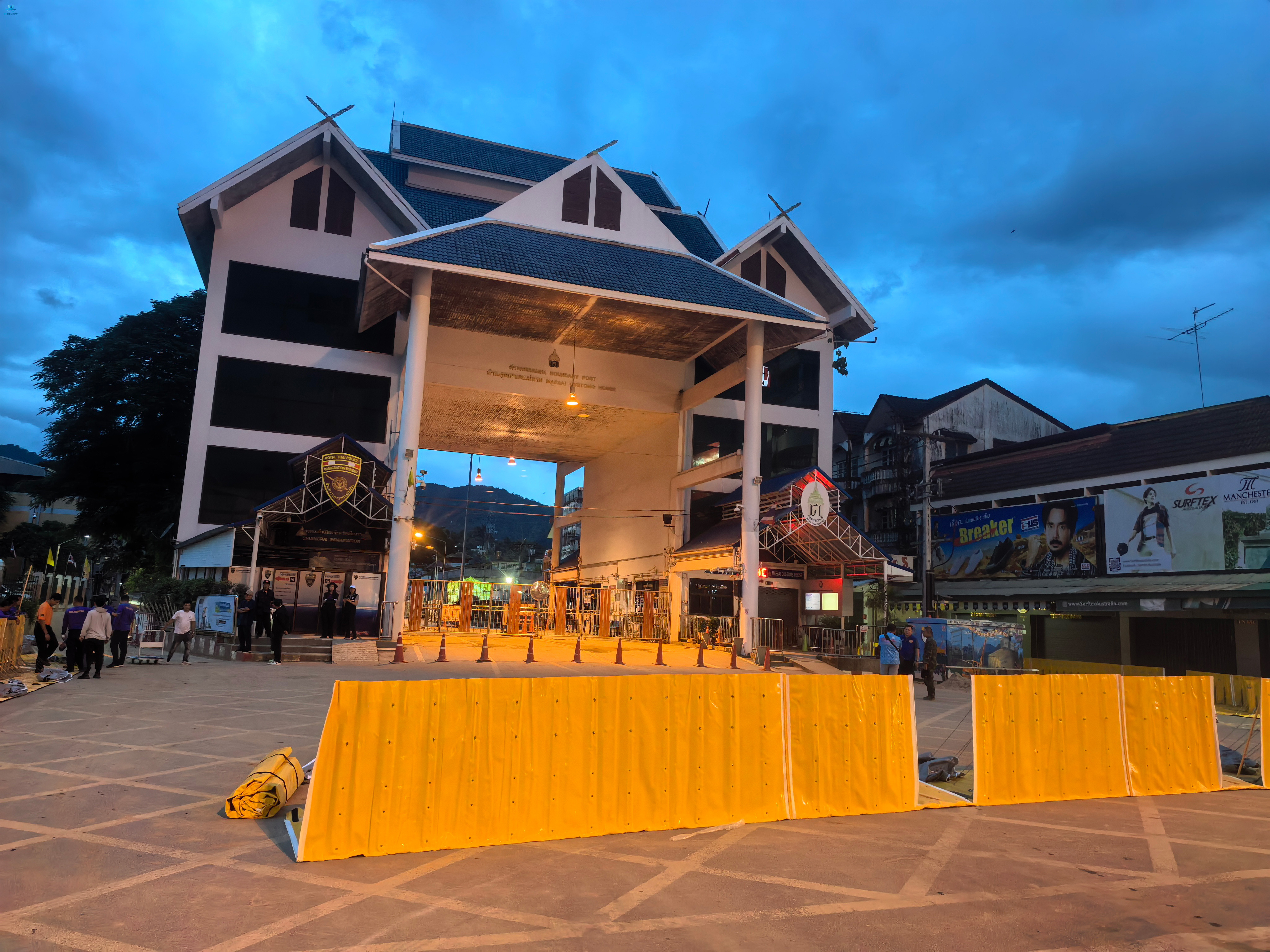

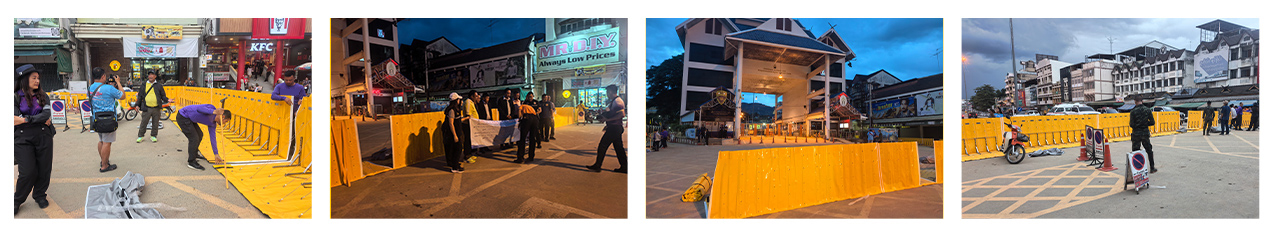

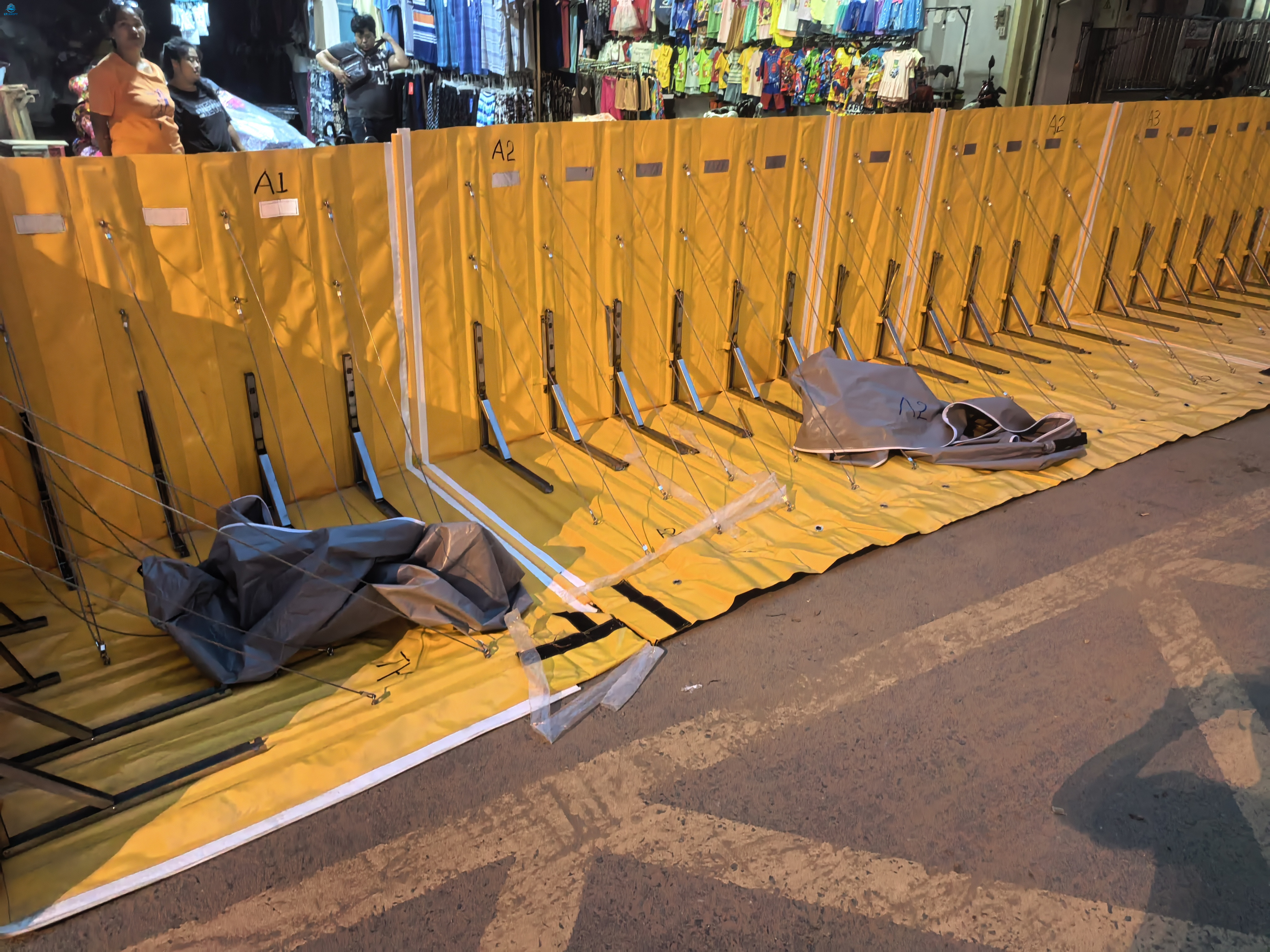

Thailand Mae Sai River Project
The Thai government responded by clearing old embankments and dredging the river channel. In this project LTCANOPY’s yellow flood panels were deployed along the riverbank to quickly establish a new barrier line. Local officials highly praised the system for its rapid setup and reliable flood protection, noting that it effectively prevented overtopping and urban flooding.

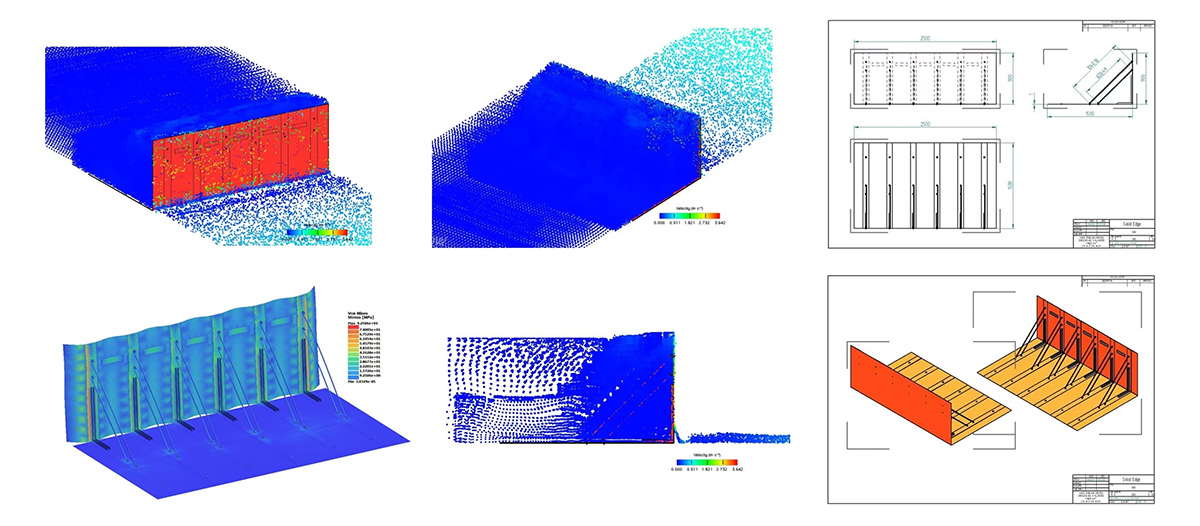

Pressure Test Data
According to simulated tests (by Thai authorities), the panel maintained a complete seal up to 1.5m water depth, with only minor seepage at 2.0m. Water pressure was approximated at ~9.8 kPa per meter of depth.
| Depth (m) | Pressure (kPa) | Performance |
|---|---|---|
| 0.5 | ≈4.9 | Sealed, no leakage |
| 1.0 | ≈9.8 | Sealed, no leakage |
| 1.5 | ≈14.7 | Slight deformation, no breach |
| 2.0 | ≈19.6 | Minor seepage observed |
as shown above. These data confirm the barrier’s effectiveness: up to 1.0m depth it remained fully sealed, at 1.5m it showed only slight deformation without breach, and at 2.0m only minor seepage was noted.
Why Choose Flood barriers over Sandbags?
Modular flood barriers offer faster deployment, cleaner operation, and better long-term cost performance compared to traditional sandbags. Ideal for both private and public flood control systems.
| Comparison | Modular Flood Barrier | Traditional Sandbags |
|---|---|---|
| Installation Speed | Quick setup by 1–2 people | Labor-intensive and time-consuming |
| Eco-friendliness | Reusable, no waste | Disposable, causes pollution |
| Storage | Rollable and space-saving | Bulky, hard to store |
| Cost Efficiency | Higher initial cost, lower lifetime cost | Low upfront, high long-term cost |
| Water Blocking | Tight seal, minimal leakage | Prone to seepage if not stacked properly |

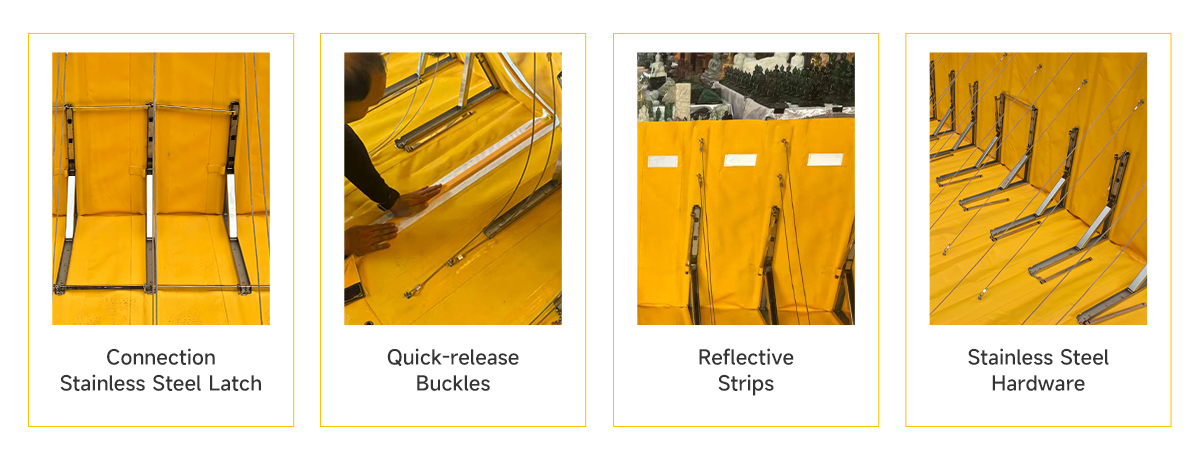

Product Details
Engineered with precision – protection in every detail.
Every flood panel is crafted with attention to detail and rigorously tested.

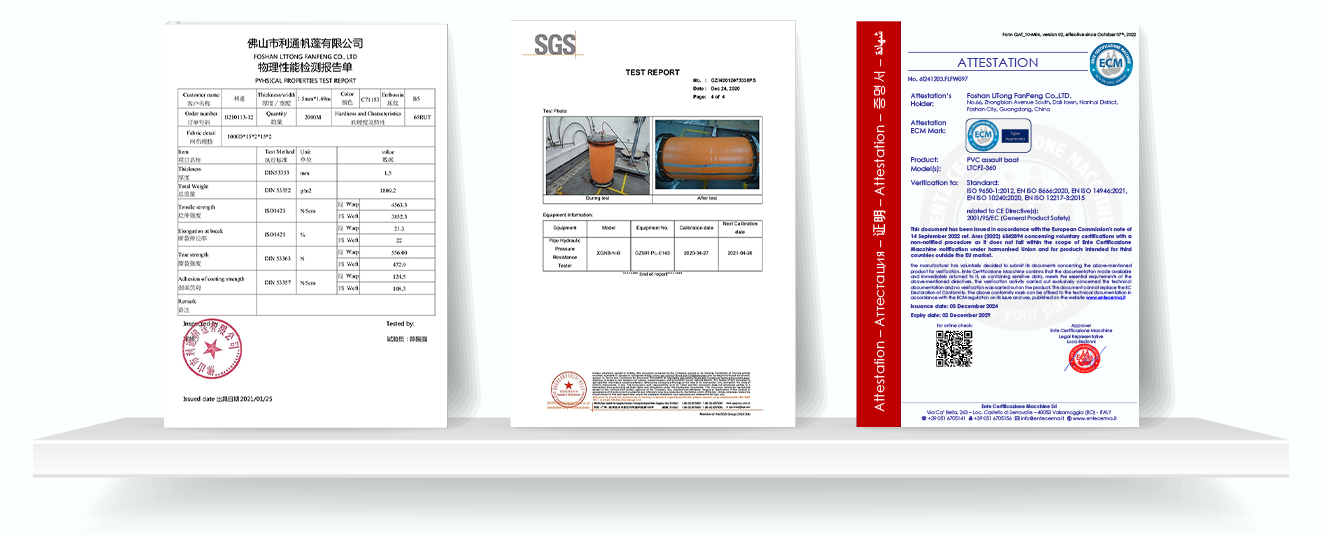

Certifications & Patents
This product is developed in-house by LTCANOPY and meets international standards. Our flood barriers carry ISO 9001 and CE certifications, with optional RoHS compliance and waterproof performance reports (IPX7+). We hold over 20 patents worldwide on our flood-control innovations, underscoring the technical leadership and reliability of our solution.
