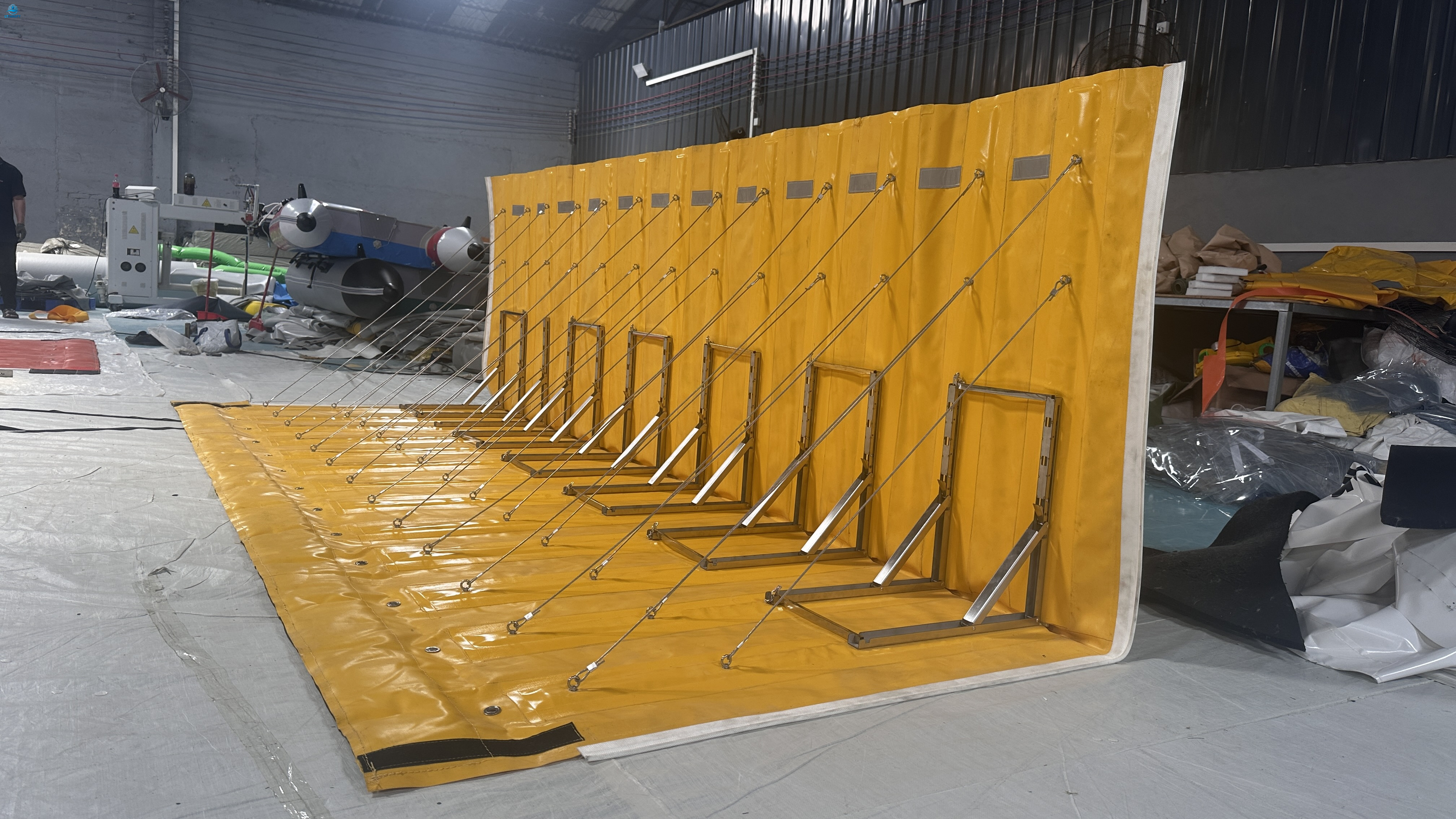

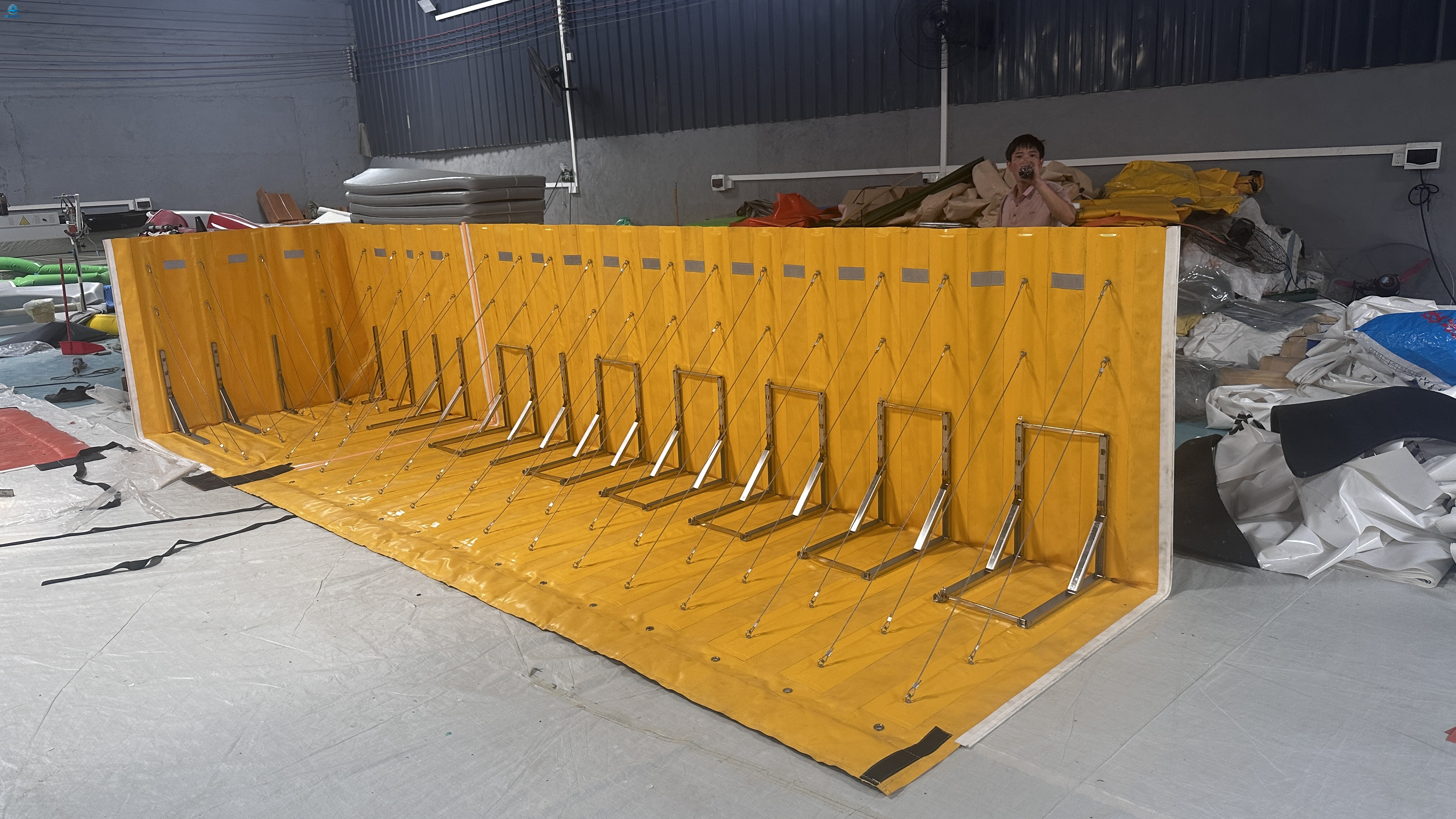

LT-267
LT
Product Parameter:
Standard size:
Product Dimension(Inch) | Product Dimension(cm) | Packing Dimension(cm) | Product Weight(KGS) | Packing weight(KGS) |
L 78.7” x W47.2” x H 35.4” | L 200 x W 120 x H 90 | L 110 x W 26 x H 26 | 20 | 22 |
L 157.5” x W 47.2” x H 35.4” | L 400 x W 120 x H 90 | L 110 x W 33 x H 33 | 40 | 42 |
L 78.7” x W 59” x H 47.2” | L 200 x W 150 x H 120 | L 136 x W 26 x H 26 | 24 | 26 |
L 157.5” x W 59” x H 47.2” | L 400 x W 150 x H 120 | L 136 x W 33 x H 33 | 52 | 54 |
L 78.7” x W 70.9” x H 59” | L 200 x W 180 x H 150 | L 166 x W 26 x H 26 | 30 | 32 |
L 157.5” x W 70.9” x H 59” | L 400 x W180 x H 150 | L 166 x W 33 x H 33 | 60 | 62 |
Color:Standard yellow, customizable (reflective strip optional).
Thickness:1.5mm/0.9mm.
Weight:4KG/ square meter.
Material:PVC coated tarpaulin / stainless steel accessories.
Advantage:
●The service life is long, compared with the flood barrier of plastic material.
●It can be folded and takes up little storage space.
●Can be quickly deployed before the flood.
●No need to instill water, saving water resources.
●It can be quickly fixed to the ground, and screws provide assistance.
●It can be used in extremely cold, low temperature of -30 degrees Celsius.
●The length can be freely combined.
●Self-supporting flood protection barrier.
●Can Turnable.
Application:residential area & gas station & River Embankment & road &street
Additional Information:
●PVC coated tarpaulin is ultra robust and abrasion resistant for installations on all types of surfaces.
●The flooding barrier is folded in a manner so that it can be deployed quickly in a body of water.
●D ring and belt to help expanded the length of barrier.

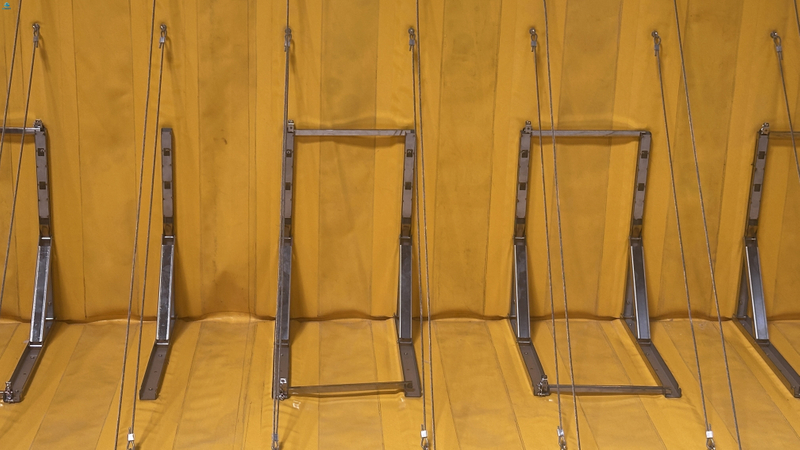

●Fiberglass plate help manipulate and elevate the ends of the flood barrier for best placement.
●Stainless steel connector make the barrier easier to fold and fix.
●Eyelets and pegs to help anchor the barrier.

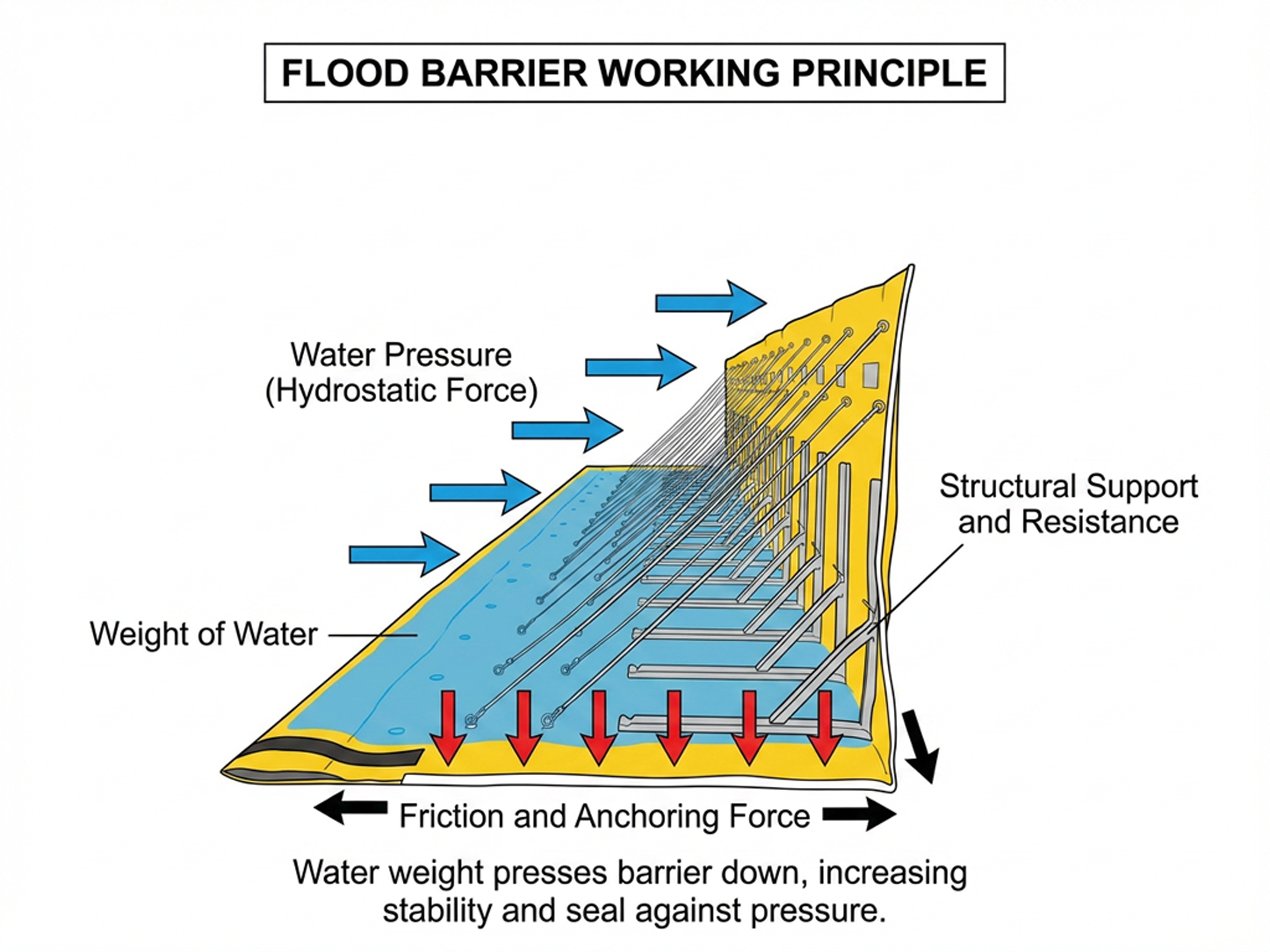

How It Works

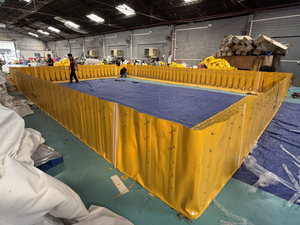

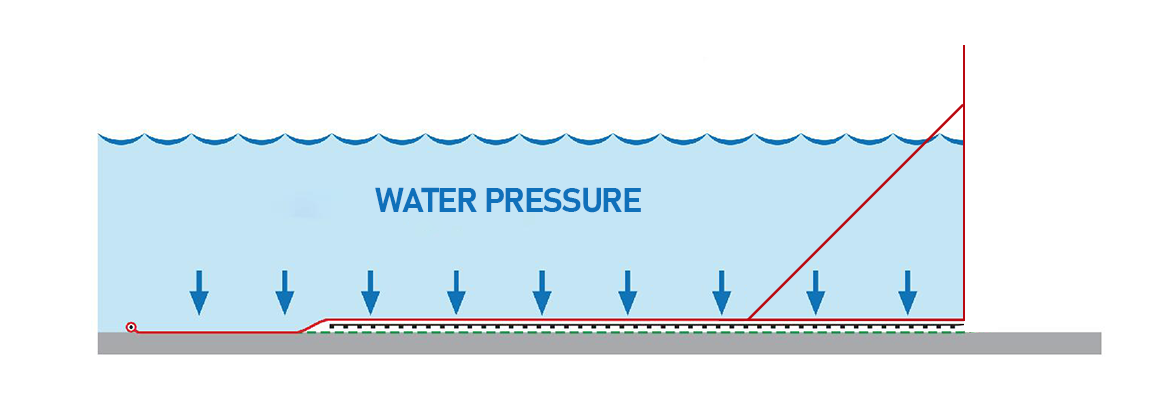

The flood barrier works by forming a water-blocking wall through tightly connected modules. When floodwater arrives, it presses the panels more firmly to the ground, enhancing the sealing effect. Internal rubber strips prevent seepage. Corner units enable full enclosure of key areas like doorways, curves, or ditches, creating a continuous flood protection line.

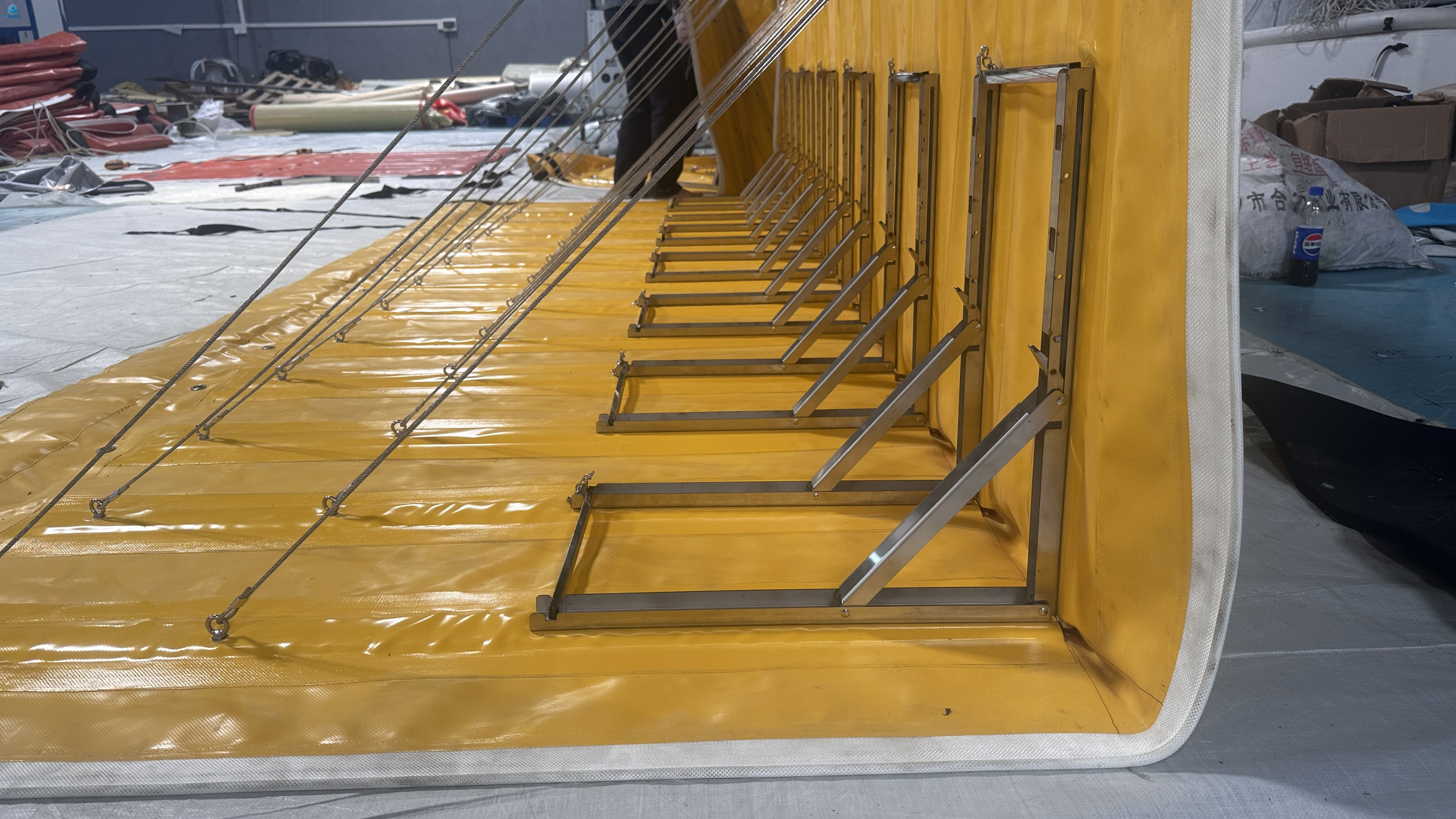

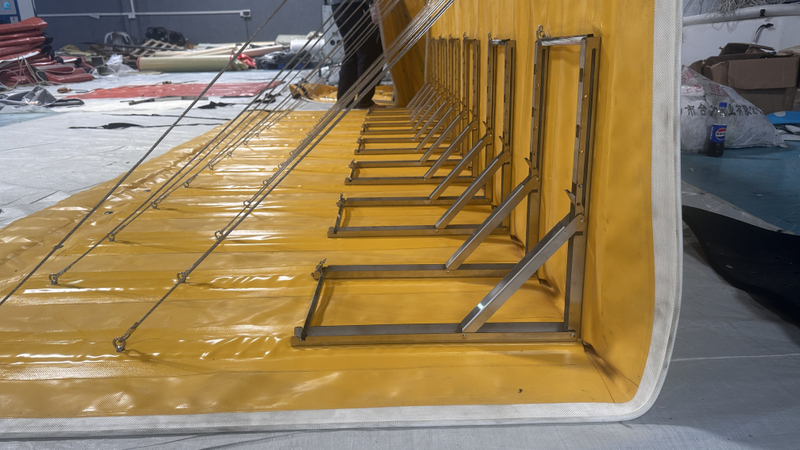

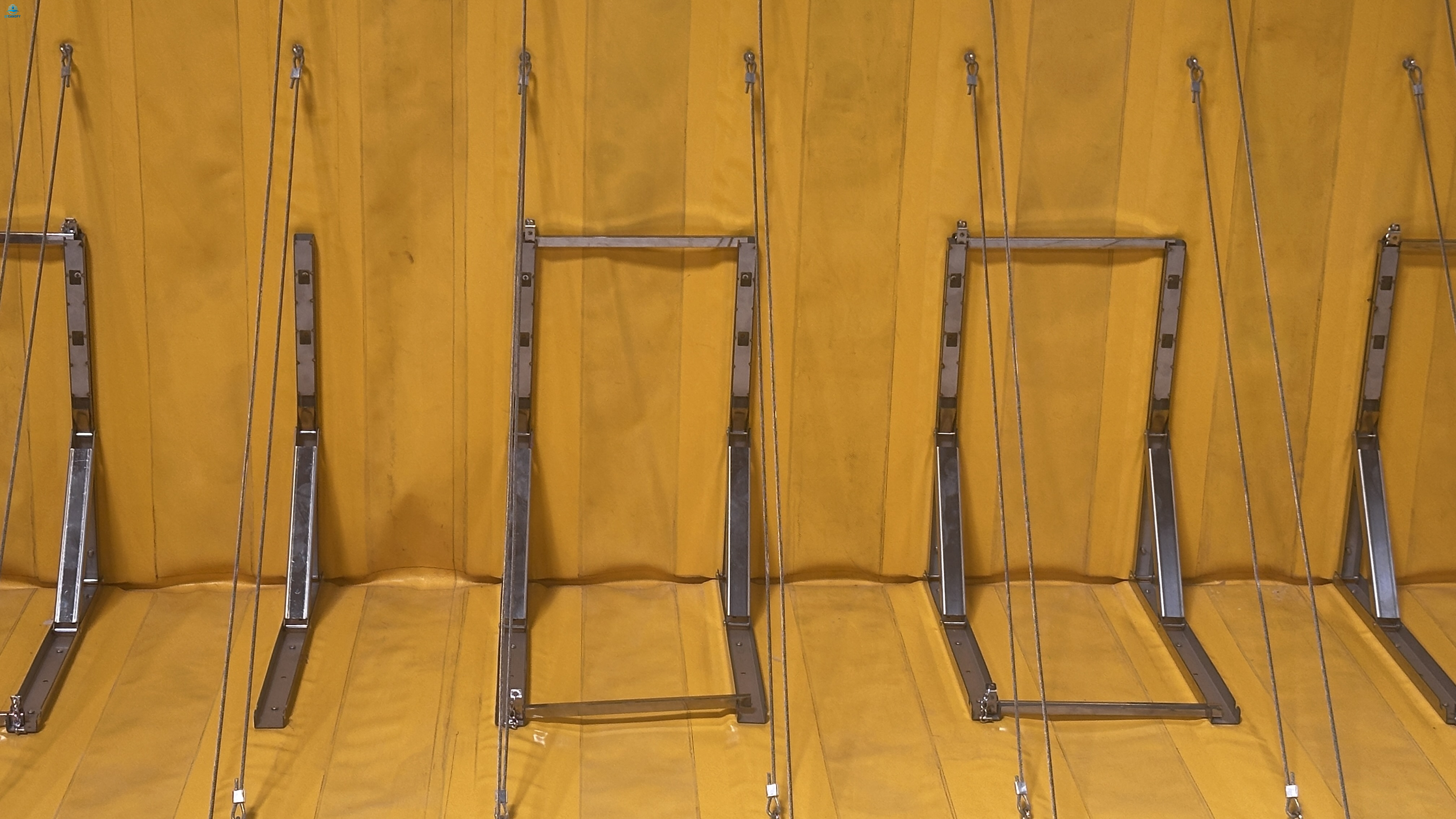

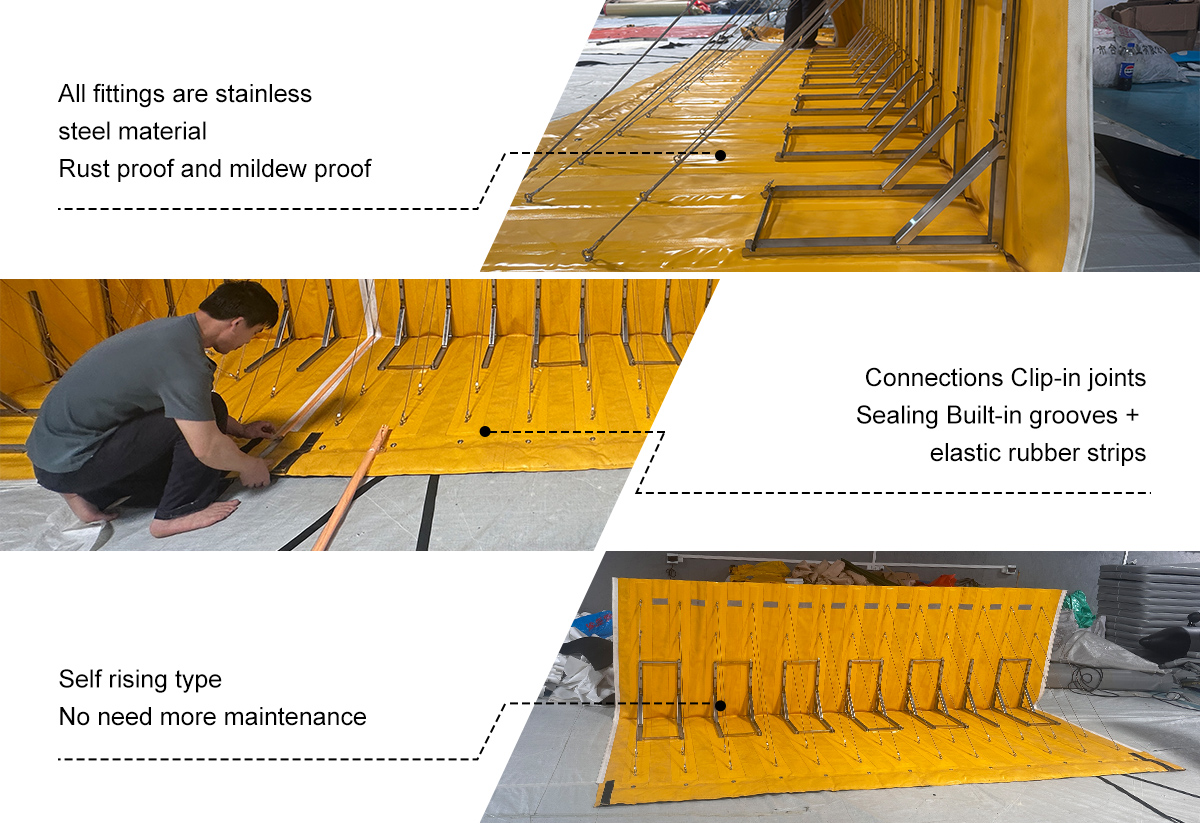

Product Details
Engineered with precision – protection in every detail.
Every flood panel is crafted with attention to detail and rigorously tested.
Why Choose Flood barriers over Sandbags?
Modular flood barriers offer faster deployment, cleaner operation, and better long-term cost performance compared to traditional sandbags. Ideal for both private and public flood control systems.
| Comparison | Modular Flood Barrier | Traditional Sandbags |
|---|---|---|
| Installation Speed | Quick setup by 1–2 people | Labor-intensive and time-consuming |
| Eco-friendliness | Reusable, no waste | Disposable, causes pollution |
| Storage | Rollable and space-saving | Bulky, hard to store |
| Cost Efficiency | Higher initial cost, lower lifetime cost | Low upfront, high long-term cost |
| Water Blocking | Tight seal, minimal leakage | Prone to seepage if not stacked properly |

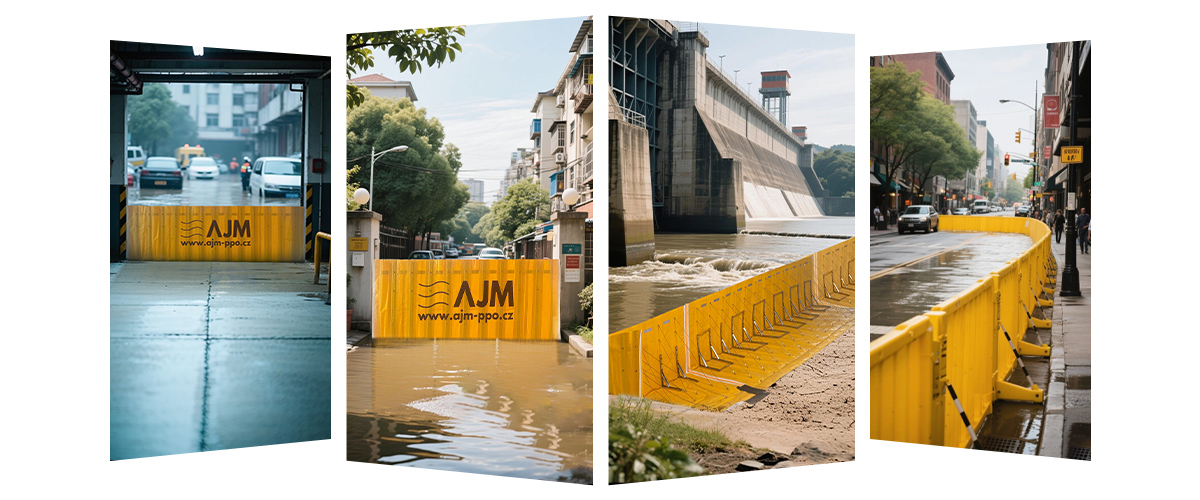

Application Scenarios
From sudden downpours and urban waterlogging to river overflow and basement seepage, this flood barrier adapts to various environments. Ideal for residential, commercial, industrial, and municipal use — delivering rapid setup and reliable protection wherever it's needed most.
Certifications
Our flood barriers comply with international quality standards and certifications:
ISO 9001 Quality Management System
CE Certificate (EU health & safety compliance)
Optional RoHS Certification
Waterproof Performance Report (IPX7 or above)
Factory Capability
With over 10 years of experience in protective product manufacturing, our factory is equipped with advanced CNC cutting, welding, and assembly lines. All flood barriers are designed, molded, produced, and tested in-house. OEM/ODM customization is available — ideal for bulk orders and long-term partnerships.
