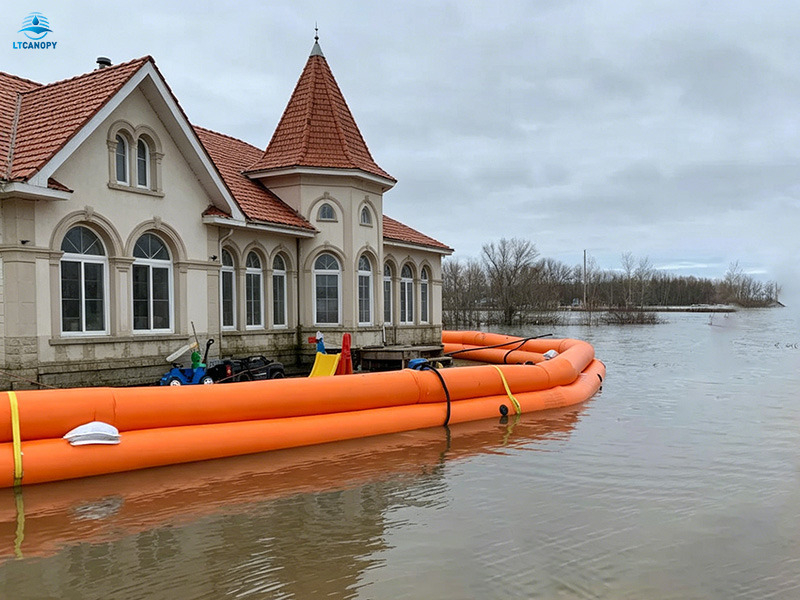

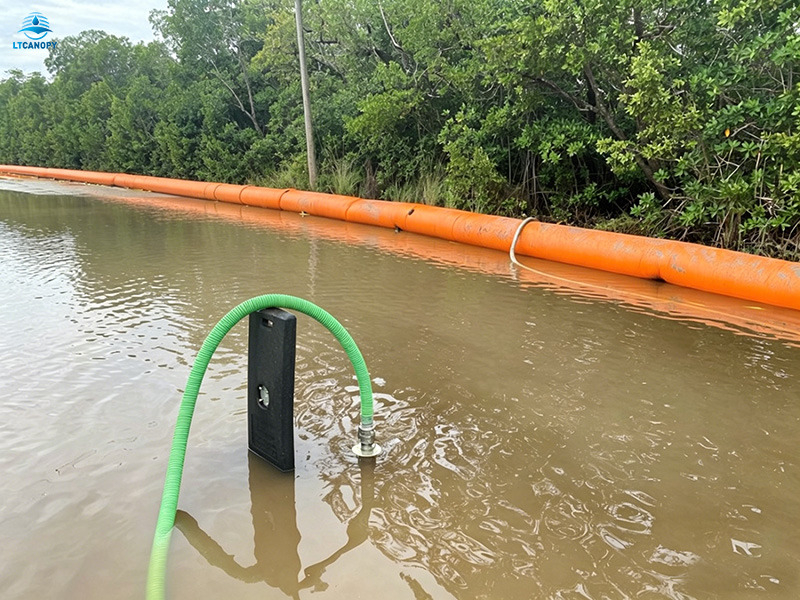

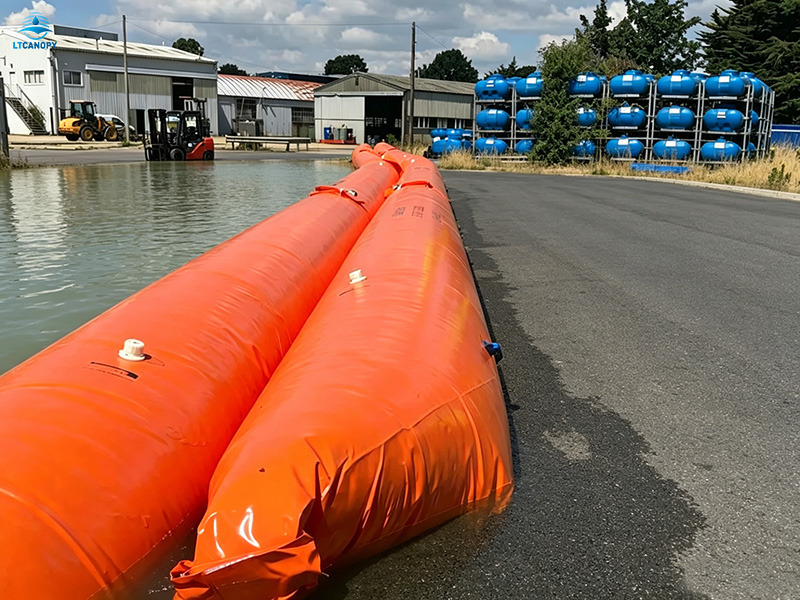

Multi Shape Inflatable Water Filled Flood Barrier

Our multi-shape inflatable flood barrier tubes are versatile, reusable water-stopping solutions designed to protect homes, garages, construction sites, riverbanks, and urban infrastructure from floodwater. Available in round, triangular, square, and half-round profiles, they adapt to different terrains, layouts, and water pressure requirements, offering a reliable alternative to traditional sandbags and permanent floodwalls.
Availability:
Quantity:

PDF Export

  • Flood Tube

Multi-Shape PVC Inflatable Water-Filled Flood Barrier | Round/Triangle/Square/Half-Round Reusable Flood Dam

We manufacture multi-shape inflatable water-filled flood barriers with four mainstream shapes: round cylindrical, triangular, square and half-round, all crafted from heavy-duty 0.9mm PVC coated tarpaulin(1100g/㎡). All models follow the standard operation rule: inflate with air first then fill local on-site water to form stable counterbalance pressure against incoming floodwater. Different shape designs match different terrain and usage: round for regular house perimeter, triangle for driveway/door entry, square for underground parking & factory loading bay, half-round for curved wall & river bend protection. All our flood barriers pass strict anti-pressure & puncture tests in our independent in-house flood control laboratory, fully reusable, foldable for compact storage and customizable in dimension, diameter and color for residential, municipal, industrial emergency flood prevention.

General Parameter

Specification

Raw Material

0.9mm PVC coated tarpaulin, 1100g/㎡, puncture-proof & anti-UV

Available Color

Orange, Blue, Black, Yellow, Red, Grey, Green (custom color)

Operation Mode

Inflate air first, then fill local water

Working Pressure

0.07bar

Temperature Range

-30℃ ~ +70℃

Custom Service

All 4 shapes support OEM size, length & shape customization

Density

20*20

Yarn count

1000D*1300D

Tear strength

Warp:429.5N Weft:521N

Tensile strength

Warp:3109.6N Weft:3211.7N

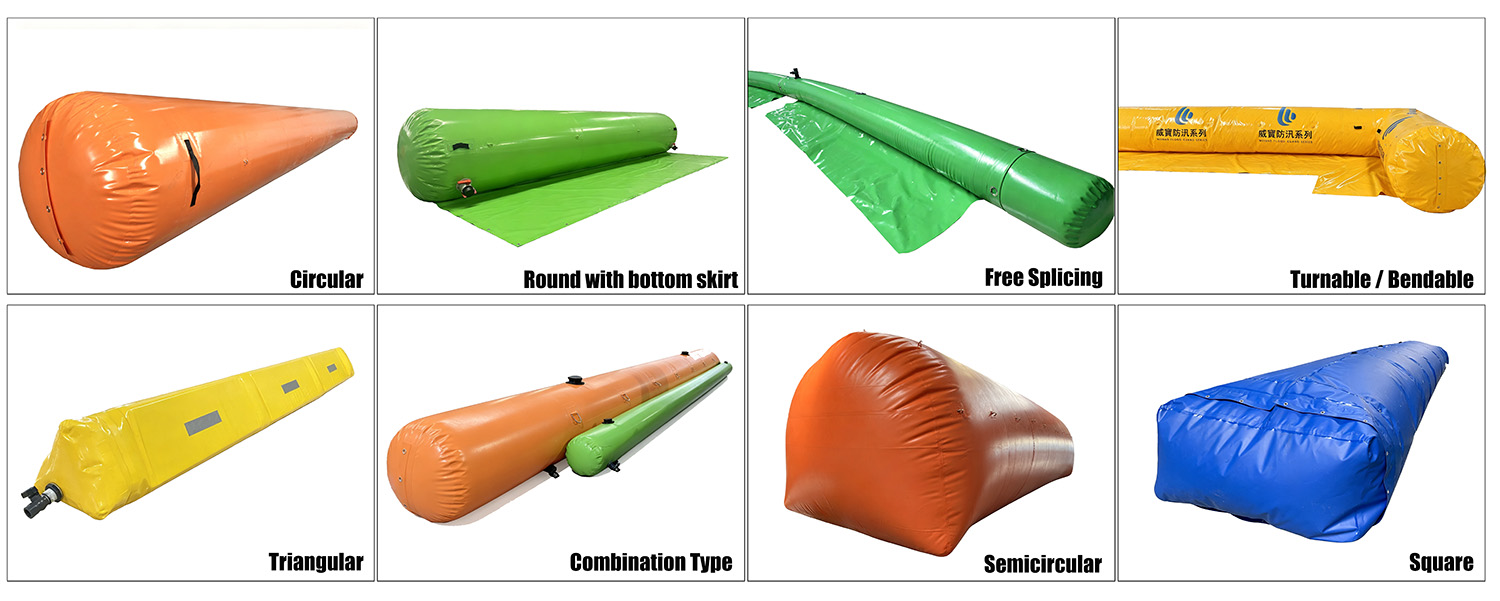

Various inflatable flood barrier designs

Core Product Advantages

Centered on modern flood control industry, we focus on innovation and superior quality to supply professional flood barrier products. Our elaborately developed items satisfy diversified demands across various industries in practical efficiency, flexible deployment and versatile application.

Cost-saving

Cost-saving alternative to disposable sandbags, slash labor & storage expense


Rapid Deployment

Quick inflate & drain, emergency rapid deployment within several minutes

Foldable, Low Shipping

Foldable compact roll-up after draining, low storage & shipping cost

Reusable, flood prevention

Eco-friendly reusable design for annual recurring flood prevention

Adaptability, UV resistant

-30℃~+70℃ wide temperature tolerance, UV resistant PVC fabric for all weather


Connectable, Corner Fittings

Connectable via built-in eyelets + optional corner fittings for irregular enclosure

Flood barrier vs traditional sandbags comparison

Classified Application Scenarios

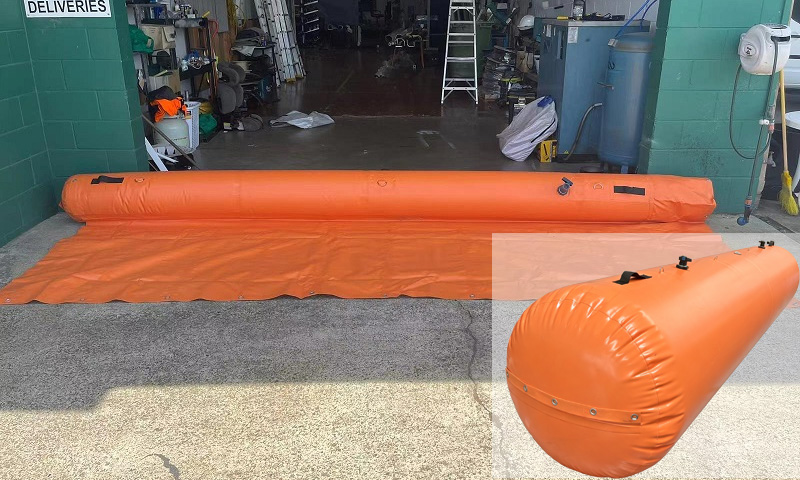

Orange circular flood barrier at doorway
Cylinder Flood Barrier (optional skirt available)

Usage:Single-family house boundary walls, straight courtyard barrier, low-lying suburban lots


Dimension: 30cm diameter x 500cm length x 60cm width(could be customized)

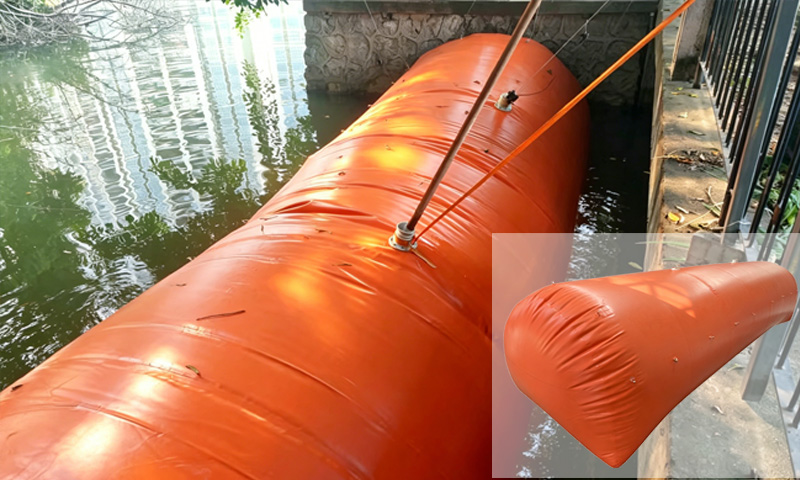

Half-Round (Semicircle) Flood Barrier


Usage:Curved enclosures, river bend sections, peripheral protection for circular structures


Dimension: 1.2m height x 1.2m width x 5m length(could be customized)



Half-round inflatable flood dam for curved wall & river bend flood diversion

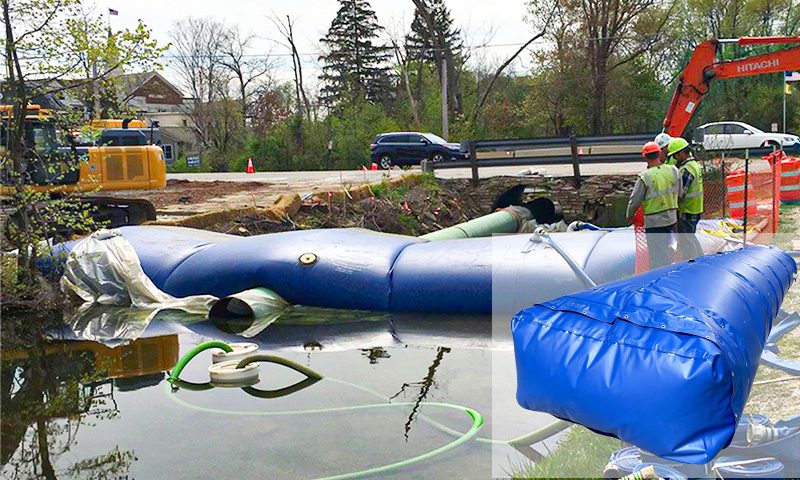

Square water filled inflatable flood barrier for underground car park & factory spill containment
Square Inflatable Flood Barrier


Usage:Underground parking entrances & exits, factory loading docks, chemical containment dike anti-seepage



Dimension: Height:Effectively stops flooding up to 5ft


Lenth: Customized as customer's request

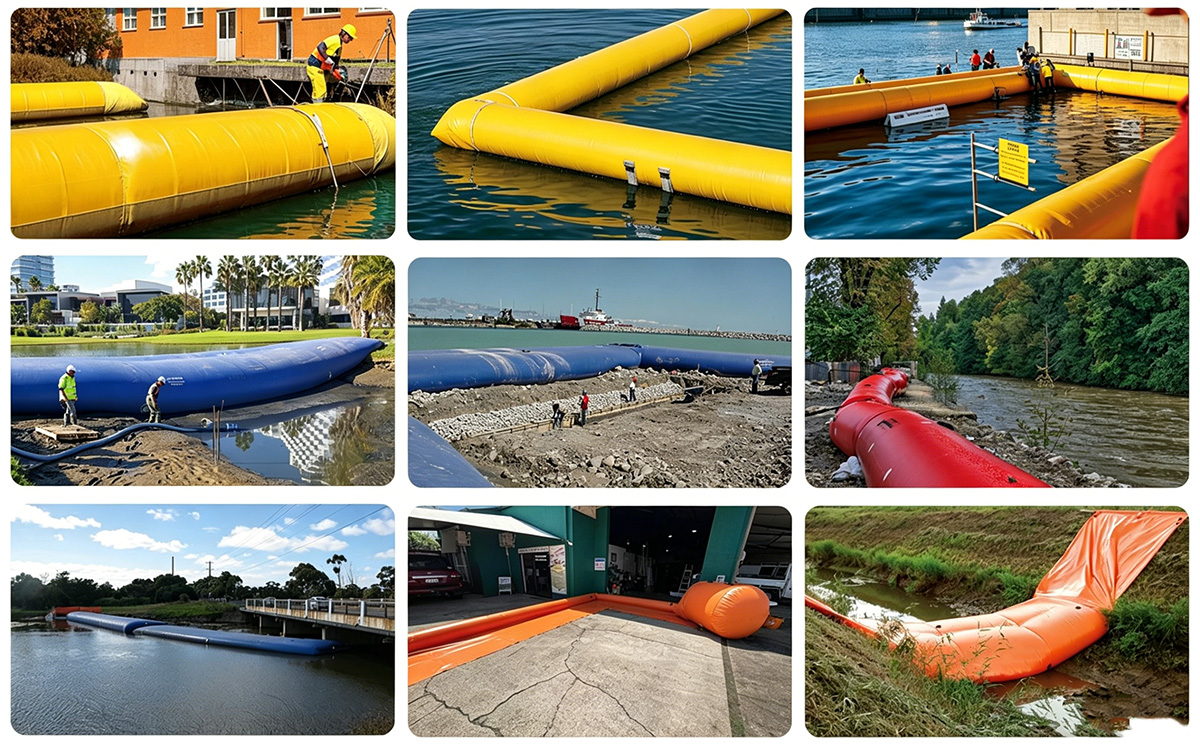

Different inflatable flood barrier applications

HOW DOES IT WORK?

Self-ballast Pressure Fixation

Overflow water flows over bottom skirt to generate downward pressure, fix barrier tightly against lateral water impact

Damming Capacity

Damming Capacity:Max block flood depth up to 5ft; larger cross-section brings higher anti-water performance

Free Splicing

Built-in metal eyelets connect multiple barriers into continuous long flood wall

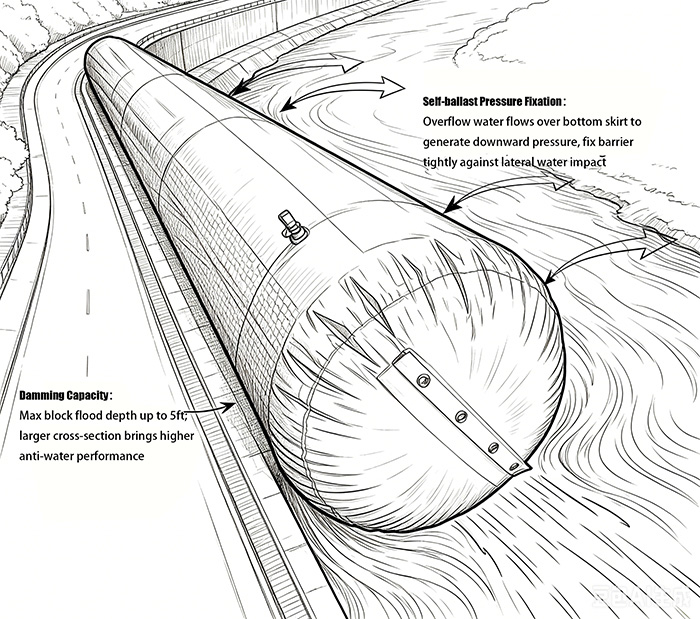

Diagram showing flood barrier operation

Detailed Disassembly Analysis of Product Components

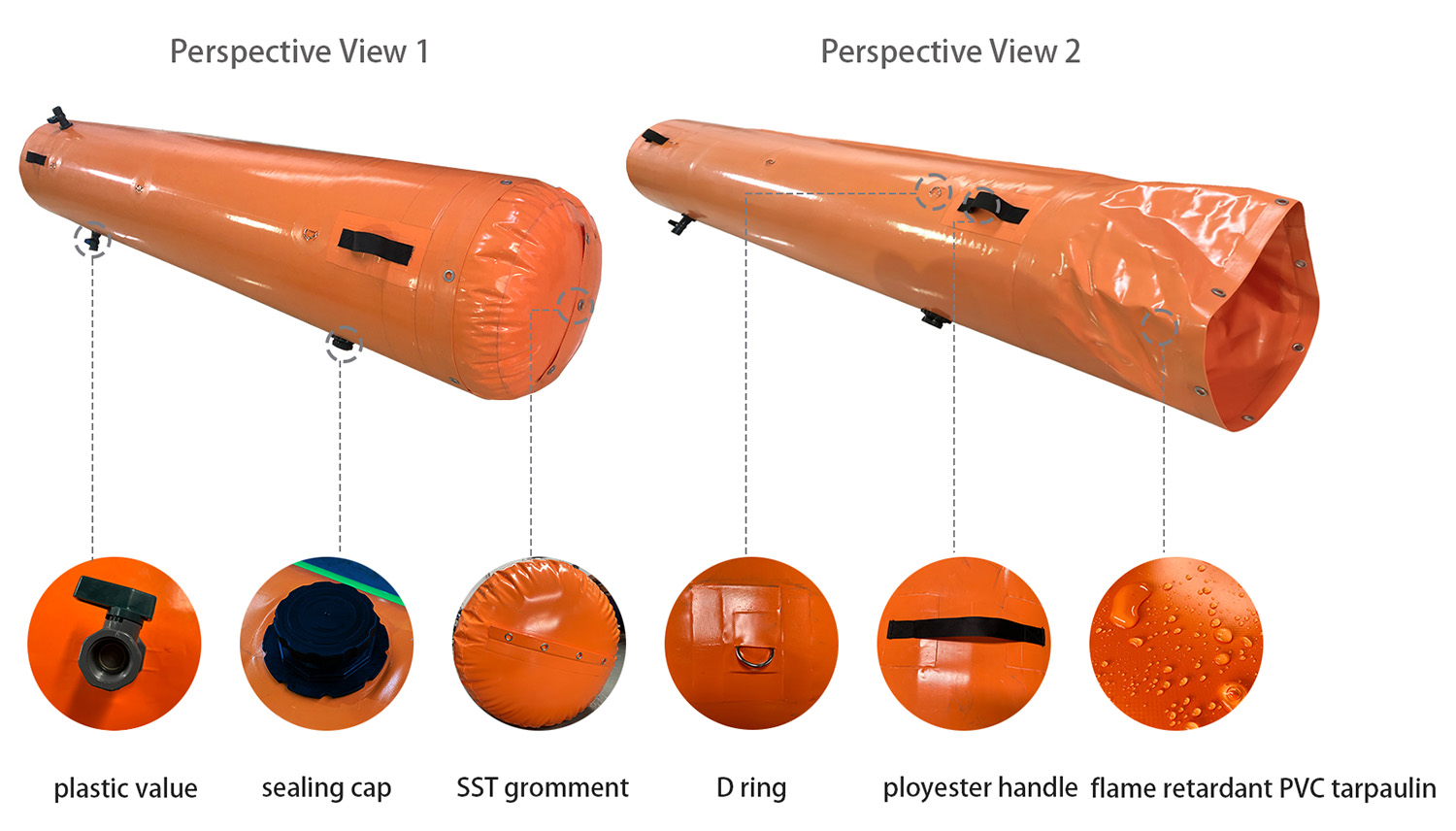

Flood barrier detailed components labeled

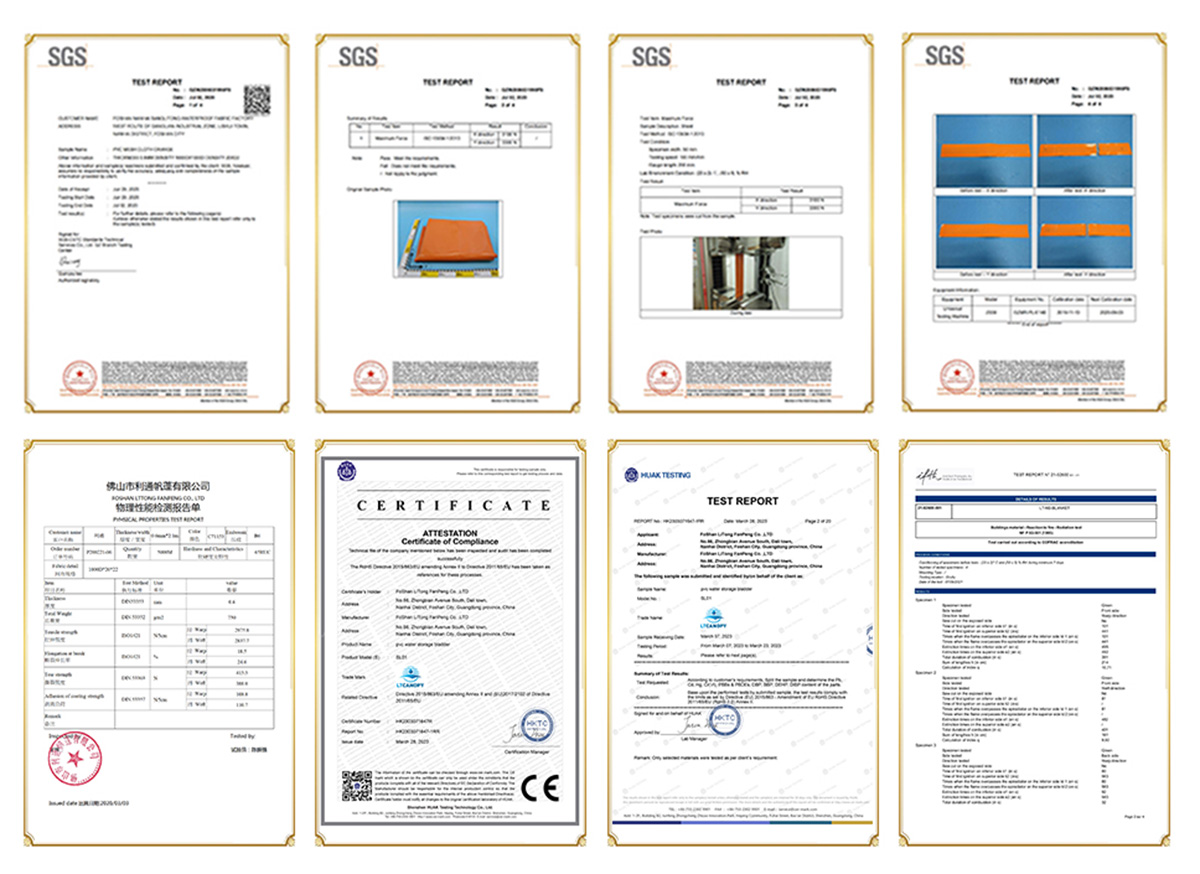

Certificates & Test Reports

SGS test reports and compliance certificates

How to Roll Up the Flood Barrier Tube

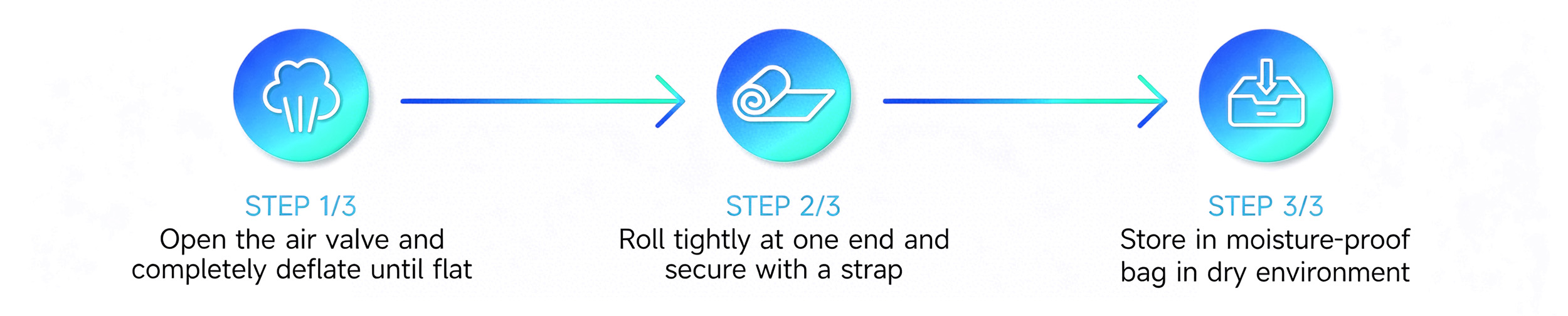

3-step flood barrier deflate and store guide

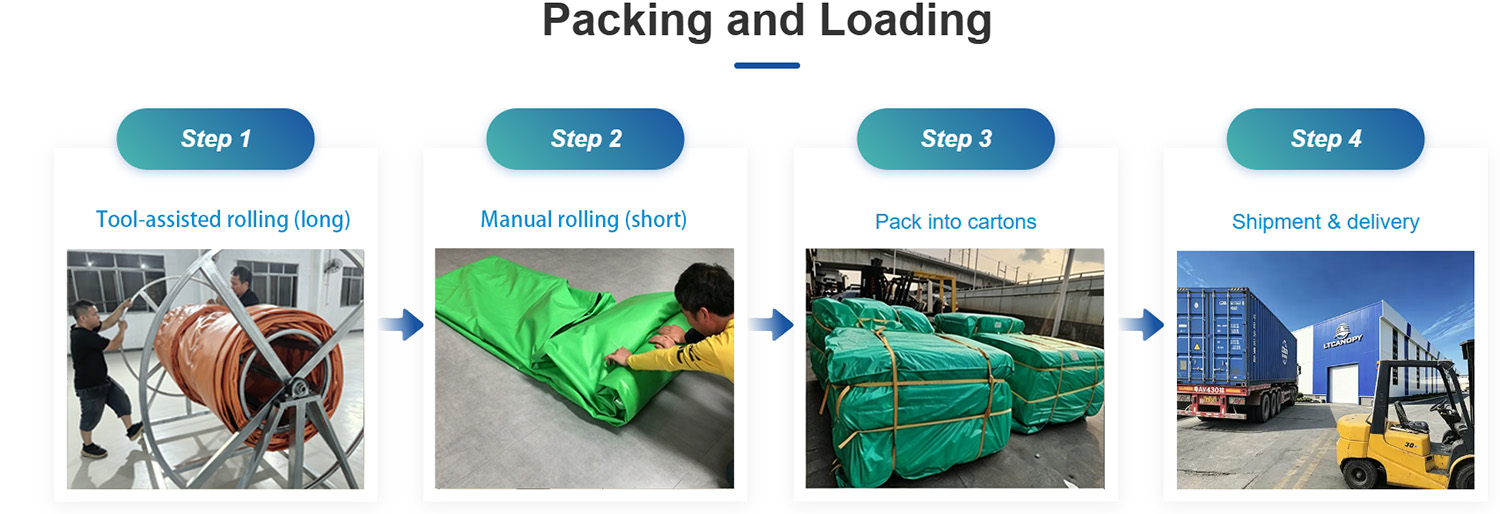

3-step flood barrier packing and loading guide

Why Choose Us?

As an integrated factory manufacturer of PVC inflatable flood barrier, we independently complete fabric coating, cutting and high-frequency welding to produce reliable water filled flood dam without middlemen.. Made of heavy-duty puncture-proof PVC coated tarpaulin, our barriers resist UV and extreme temperature, relying on water self-pressure to block flood efficiently. Quick to deploy and foldable for storage, they replace wasteful sandbags and cut long-term costs. We provide flexible OEM&ODM customization on dimension, color and logo with low MOQ. All items undergo strict water pressure inspection before shipment, with complete documents and professional after-sales service for global purchasers.

Independent Flood Control Lab

In-house flood prevention laboratory for water pressure & abrasion testing before delivery

SGS Certified QC Tested

Full-range products passed SGS certification, strict factory inspection

OEM & ODM Custom Available

Factory direct OEM & ODM service for bulk order of any shapes

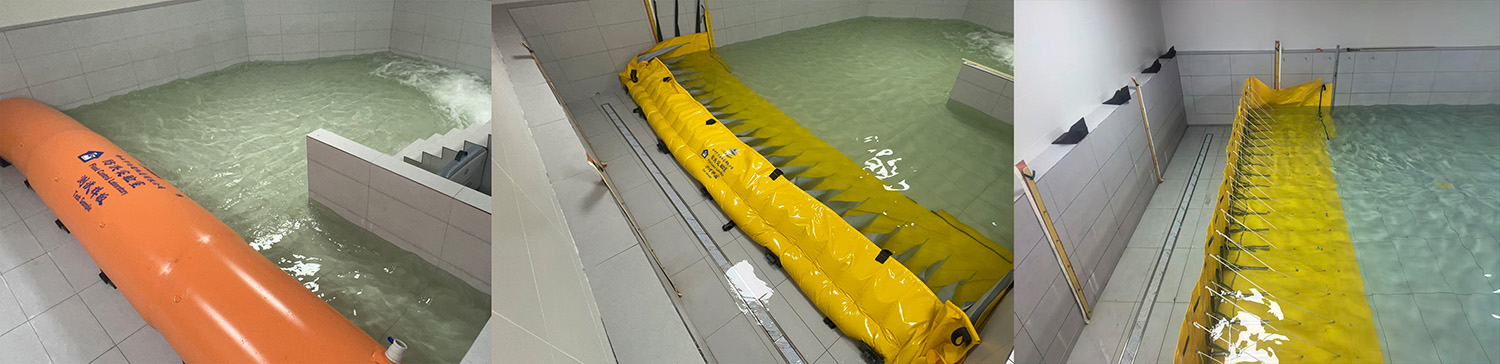

weibiaoti

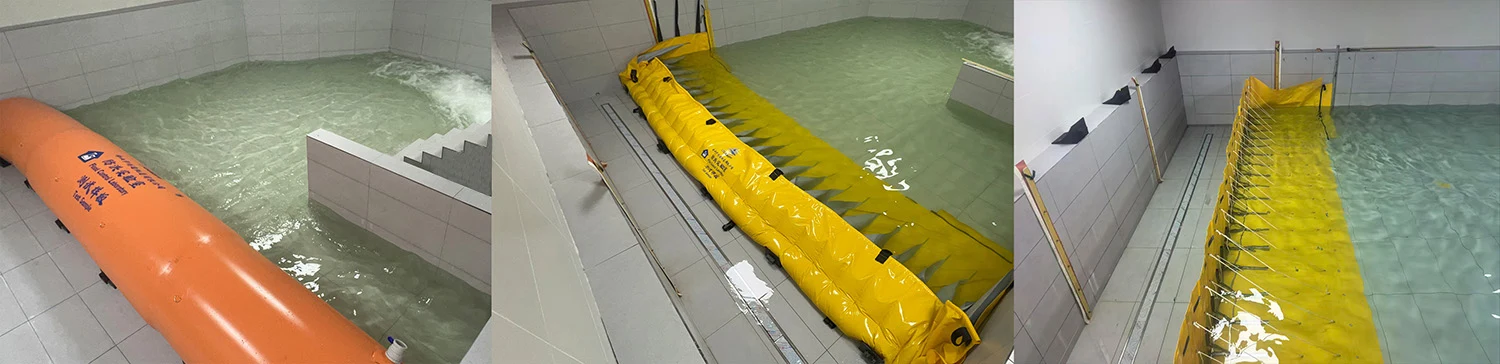

Self-owned flood prevention lab


In-house Production

1

Heavy-Duty Industrial Sewing

Stitch cut fabric panels with heavy-duty sewing machines

Reinforce structural seams for durability

Ensure joints withstand repeated use and water pressure

2

High-Frequency Welding

Core sealing process for inflatable flood barriers

Heat and press seams to melt PVC material

Form fully waterproof and airtight bonds

4

Large-Format Digital Printing

Apply custom logos, patterns or safety markings

Industrial-grade printing on waterproof fabric

Full customization without compromising material properties

FAQ

Which shape flood barrier is best for garage driveway flood protection?

For most garage driveways, triangular or half-round inflatable flood barriers are the most popular choices. Their sloped profile guides water to self-seal against the ground, while the rounded edge reduces the risk of vehicle damage when crossing. For wider driveways, multiple barriers can be connected end-to-end to form a continuous protective line.

Can all four shaped flood barriers be connected together for mixed-shape enclosure?

Are all models reusable repeatedly after draining floodwater?

Can we customize special dimension or unique shape for engineering projects?

How high flood level can each shaped inflatable dam hold back?
