LT-264
LT

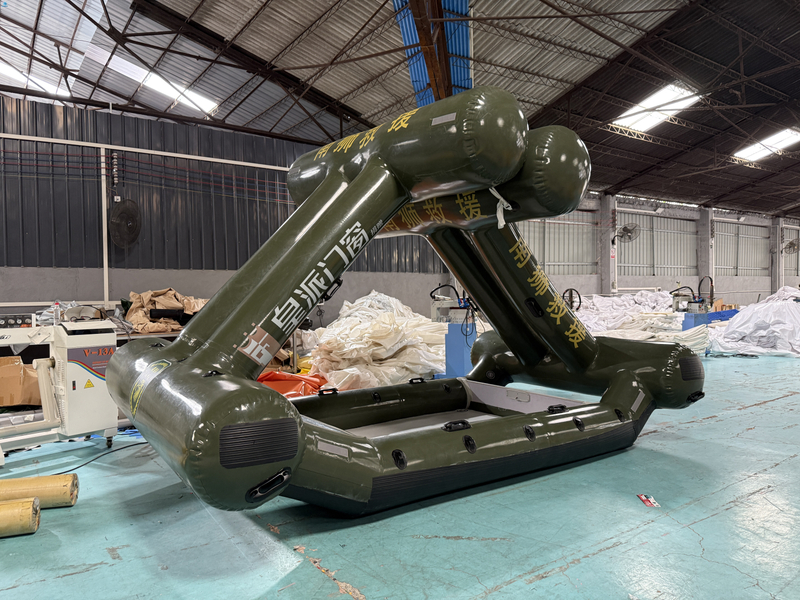

Built for harsh environments, this inflatable lifeboat features a self-righting triangle design, high-capacity structure, and robust PVC material that meets international standards. Can be folded for transport and rapidly deployed in field operations.
Specifications
Item | Detail |
Model | HL460ZFZ |
Length | ≥ 4610 mm |
Width | ≥ 2560 mm |
Height | ≥ 2750 mm |
Tube Diameter | 600 mm |
Transom Height | 380 mm |
Transom Thickness | 37 mm |
Air Chambers | 12 main + 2 auxiliary + 1 keel |
Max Load Capacity | 1220 kg / 12 persons |
Floor Shape | "M" hull structure |
Chamber Valves | 15 inflation valves, 12 pressure valves |
Accessories | 2 aluminum paddles, 7L pump, repair kit, manual, straps, boat bag |
Certifications | CMMA/CNAS 3rd-party reports available |
Key Features & Advantages
2+2+1 Independent Chamber System
Maintains buoyancy even when multiple chambers are damaged
Reduces risk of capsizing or rapid deflation
Designed for emergency situations with strict safety margins

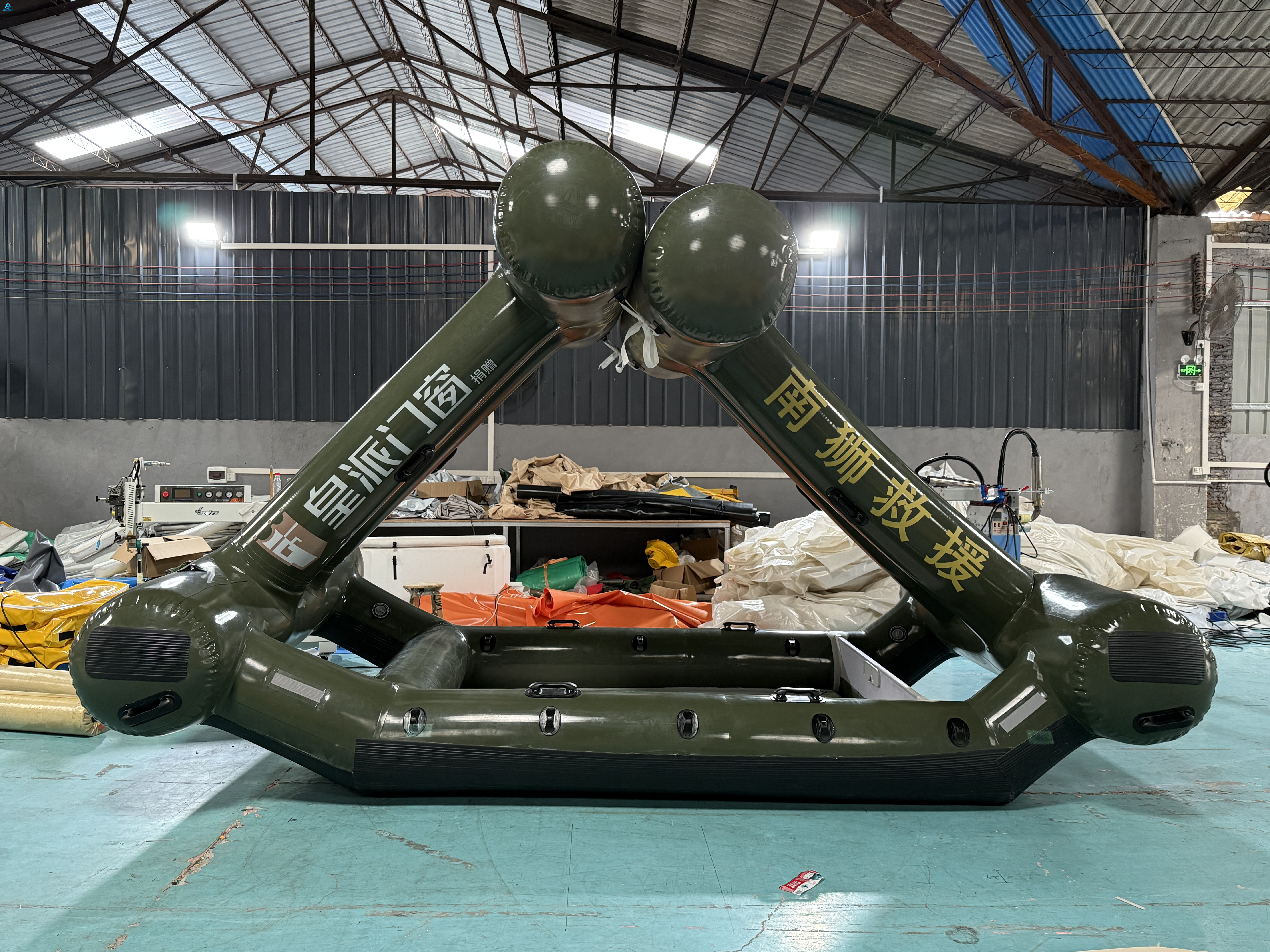

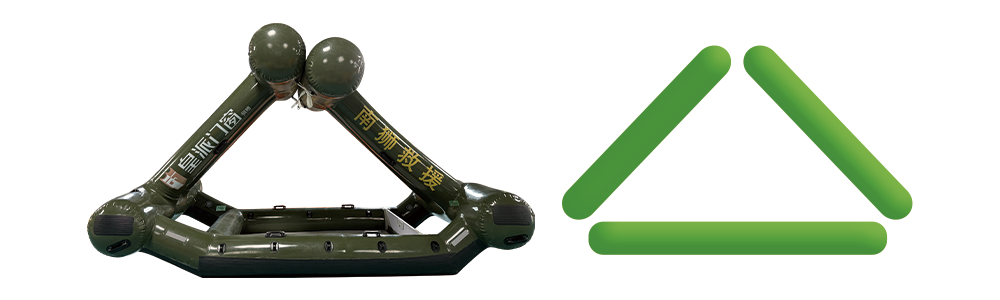

Automatic Self-Righting Design
Equilateral triangle hull provides unmatched stability
If overturned, the boat will return to upright position without human intervention
Ideal for high-risk missions in turbulent seas and rapid water flows
Heavy-Duty Reinforced Hull Structure
“M”-shaped inflatable bottom absorbs impact and improves balance

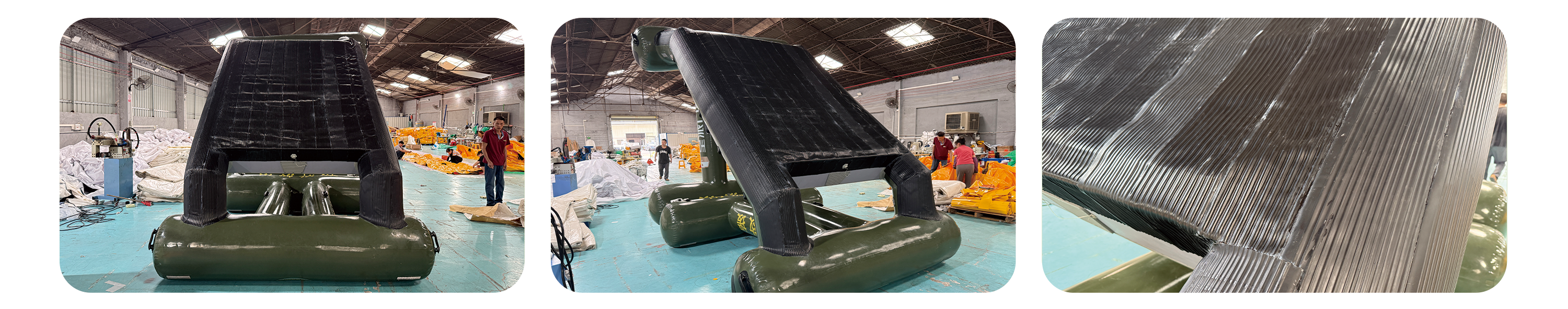

Anti-slip, wear-resistant armor stripes on the underside (3 pieces, 200mm wide)

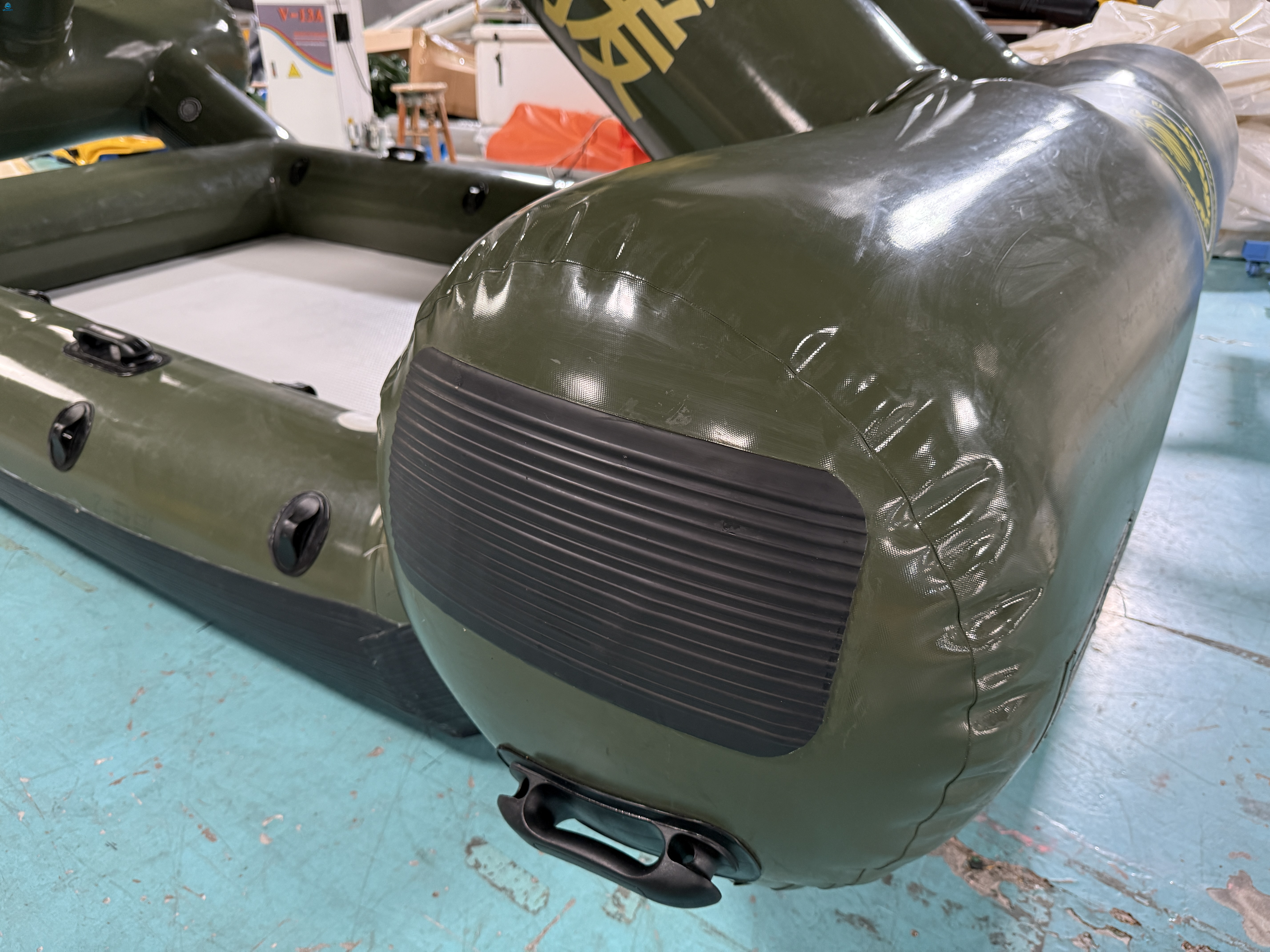

20mm-thick anti-collision plates on the hull edges

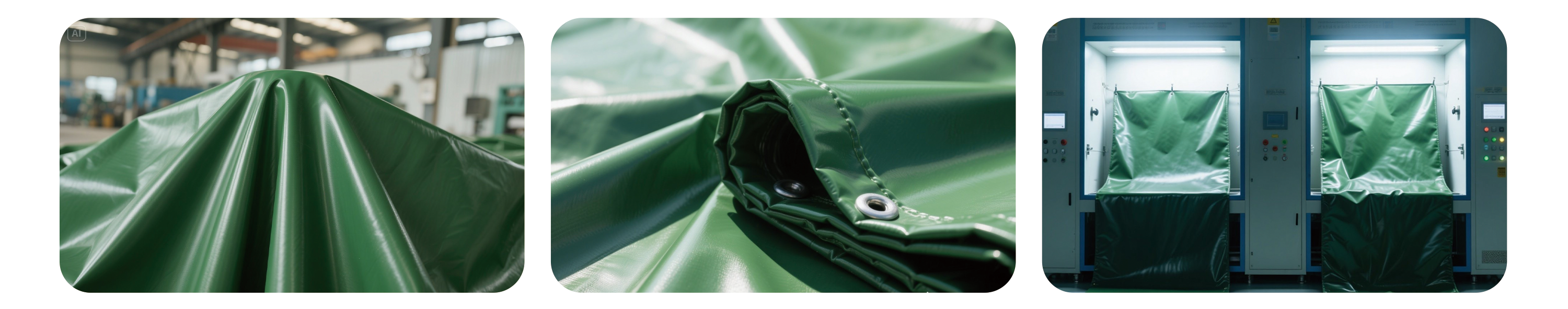

Extreme Durability Materials
PVC material tested to resist UV aging, salt spray corrosion, and puncture damage
Tear strength > 650N
Tensile strength ≥ 4500N/50mm
Elongation at break ≥ 30mm
Passed 72h artificial climate aging test without discoloration or cracking
Supports 1220kg loading with 12 fully loaded persons without flipping or breaking
4 hard handles, 20 soft handles, 2 stainless steel safety rope rings
12 waterproof reflective strips for night operation
Equipped with 3 towing points at the bow
Self-draining outlet and additional pull-type drain plug

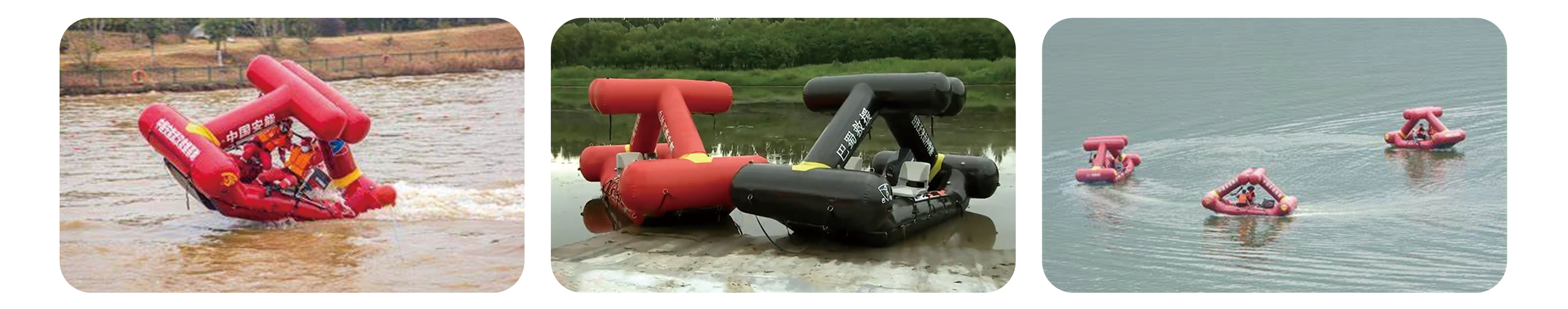

Flood and flash flood rescue
Coastal disaster evacuation
Offshore emergency transport
Dam safety & disaster engineering
NGO humanitarian missions
Compliant with national safety standards for inflatable rescue craft
Third-party testing by CMMA or CNAS certified labs
Materials tested for salt spray resistance, UV aging, puncture and tear resistance
Manufacturer meets GB/T27922-2011 and Q/GDZR 01065-2023 standards
Test results available upon request (original certificates, not photocopies)
✅ Automatically rights itself when capsized
✅ Built for rough oceans, flood zones, and dams
✅ 12+2+1 chamber structure ensures maximum safety
✅ Designed for high-capacity rescue logistics
✅ Fully compliant with national & international standards
✅ Trusted by professionals in multiple countries
Foshan LiTong FanPeng Co., Ltd. is a professional PVC coated tarpaulin raw material supplier and processing manufacturer. Our products mainly include flood barriers, sound blankets, water bladders, oil booms, air ducts, membrane structures and various types of PVC covers nd tents.
Our products have passed SGS testing. We can provide ROHS, flame retardant, dustproof, low temperature resistance, wear resistance and other test reports. With our professional technology, efficient sales team and competitive price advantages, we have attracted customers from all over the world. Currently we have exported to more than 20 countries.
